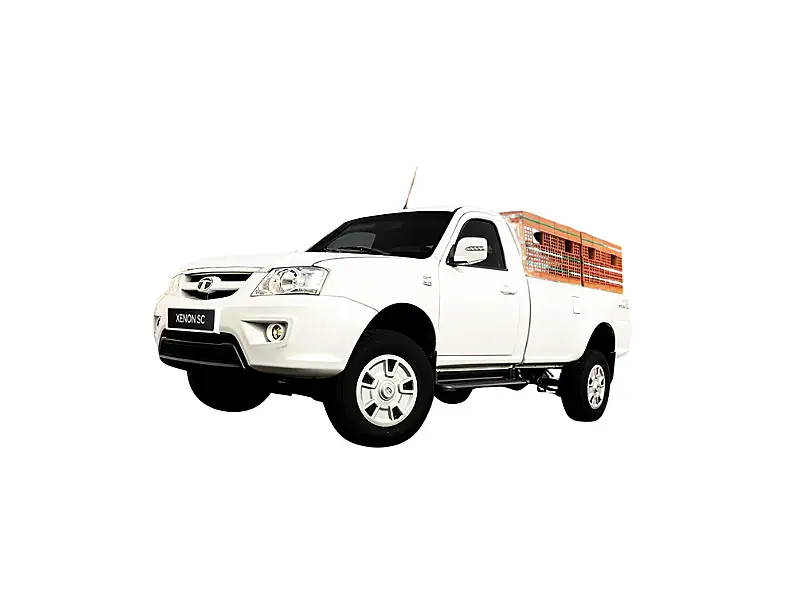

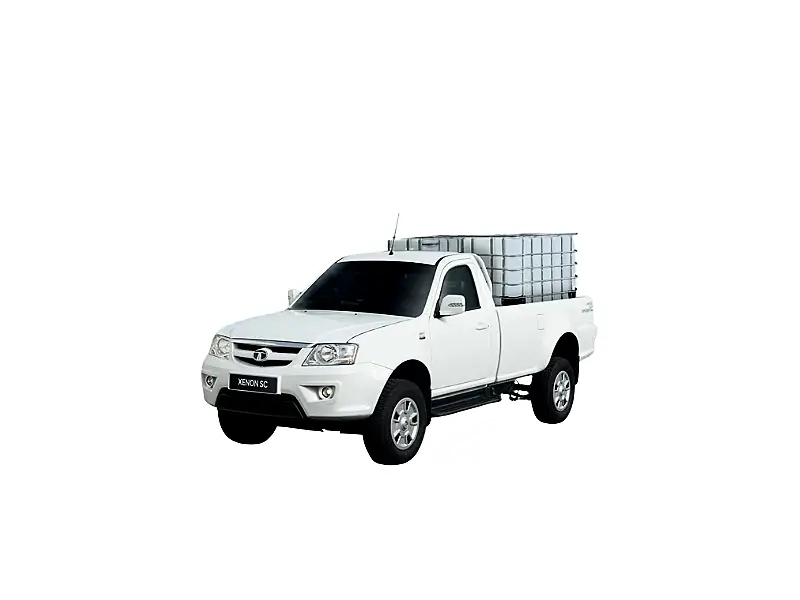

Tata Yodha SC 4x2
Variants
}
Key Specifications of Tata Yodha SC 4x2 Truck
-
Engine Type
Common rail direct injection Turbocharged Intercooled diesel engine -
Max Power
64 KW at 3000 rpm -
Max Torque
250 Nm at 1000-2000 rpm -
Power Steering
Hydraulic Power Steering -
No. of Tyres
4 + 1 -
Gross vehicle weight (Kgs)
3100 Kgs
Specifications of Tata Yodha SC 4x2
- Engine TATA 4SPCR10
- Engine Type Common rail direct injection Turbocharged Intercooled diesel engine
- Engine Capacity 2956 cc
- Engine Power 64 KW at 3000 rpm
- No of Cylinders 4 inline
- Emission BS 4
- Torque 250 Nm at 1000-2000 rpm
- Gradeability 30%
- Clutch 260 mm
- Steering System Hydraulic Power Steering
- Suspension - Front Rigid Suspension with leaf spring & Shock absorber
- Suspension - Rear Semielliptical type
- Antiroll Bar At Front
- No of Tyres 4 + 1
- Size & Ply rating 215/75 R 16 LT 113/111 S
- Wheelbase 3150
- Ground Clearance 210 mm
- Overall Length 5350
- Overall Width 1860
- GVW 3100 Kgs
- Payload 1250 Kgs
- Fuel Tank Capacity 45 Litres
