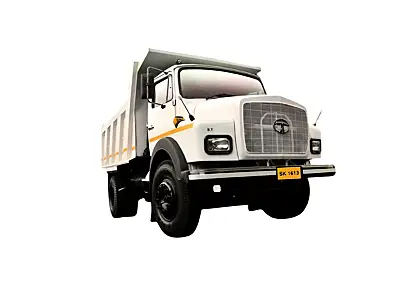

Tata SK 1613 Base

Specifications of Tata SK 1613 Base

• Engine CUMMINS 6BTAA 5.9 "BS-III"
• Engine Type Water cooled direct injection,Turbo charged, intercooled, Diesel Engine
• Engine Capacity 5883 cc
• Max Engine Output 101.5 KW (136.1 HP) at 2500 rpm
• No of Cylinders 6 inline
• Cylinders / Displacement 6 inline, 5883 cc
• Max Speed 78 Kmph
• Emission BS-III
• Torque 490 Nm at 1500 rpm
• Gradeability 26%
• No of Gears 6 Forward + 1 Reverse
• Gear Box TATA G-600-6 Speed
• FGR 8.47
• Clutch Single plate dry friction type
• Clutch Lining Outside Diameter 352mm
• Steering System Hydraulic assisted power steering
• Brakes Fully duplicated Full air S-cam brake
• Brake Drum Diameter 410 mm
• Suspension Semi elliptical leaf spring
• Shock absorber Hydraulic double acting telescopic type at front only
• No of Tyres Front-2, Rear-4, Spare-1
• Wheel Rims 7.50 x 20
• Axle - Front Heavy duty forged I beam Reverse Elliot type
• Axle - Rear Fully floating axle RA109RX
• Axle Final ratio 5.86:1 (41/7)
• Frame Ladder type heavy duty frame with riveted/bolted cross members
• Frame Depth 223 mm
• Frame Width 60 mm
• Ground Clearance 3625
• Overall Length 6100
• Overall Width 2434
• Over Hang - Front 1185
• Over Hang - Rear 1290
• Turning Circle Radius 7.4 m
• Turning Circle Diameter 14.8 m
• Turning Clearance Circle Diameter 16.2 m
• Track Front 1964
• Track Rear 1817
• GVW 16200
• Max Permissible FAW 6000
• Max Permissible RAW 10200
• Fuel Tank Capacity 160 L
• Battery 2 x 12V, 150 Ah
• Vehicle Drive RHD
• Alternator 55 Amps
