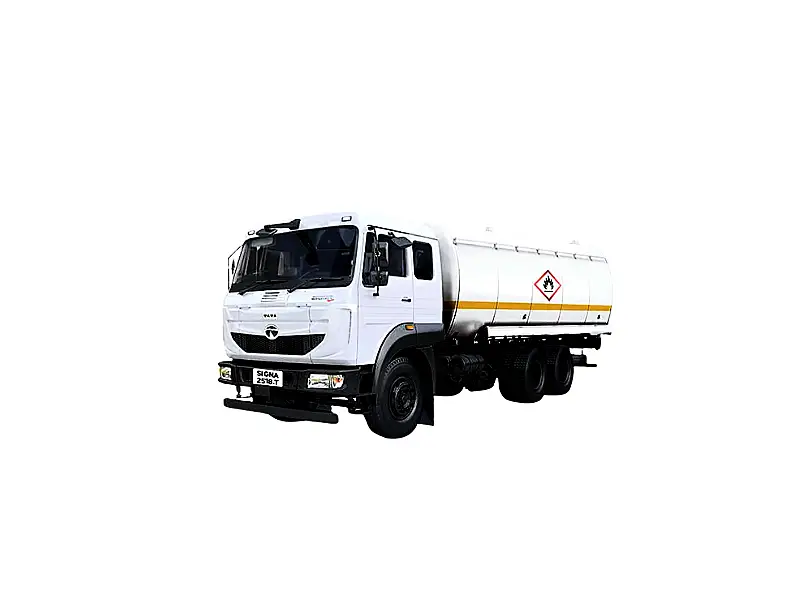

Tata Signa 2518.T Base
Variants
}
Key Specifications of Tata Signa 2518.T Base Truck
-
Fuel Tank Capacity
225 -
Engine Type
Water cooled direct injection Turbocharged, Intercooled Diesel engine -
Gross vehicle weight (Kgs)
25000 kg -
Seating Capacity
D+2 -
Wheelbase (mm)
4880 Kg -
Payload Capacity
18500 Kg
Specifications of Tata Signa 2518.T Base
- Engine CUMMINS B5.9
- Engine Type Water cooled direct injection Turbocharged, Intercooled Diesel engine
- Body Type LPT2518 SIGNA BS3 NA DAC SRT109 10X20 NT
- Engine Capacity 5883
- Engine Power 178 HP at 2500 rpm
- Max Speed 78
- Torque 690 Nm at 1500 rpm690 Nm at 1500 rpm
- Gradeability 26%
- Gear Box GB750, 6F + 1 R
- Clutch 380
- Steering System Hydraulic Power Steering
- Brakes Full Air S-Cam with Automatic Adjuster
- Suspension - Front Semi Elliptical Leaf Spring
- Suspension - Rear Semi Elliptical Leaf Spring
- Tyre Size 10.00-20 16PR
- Length 9130
- Width 2515
- Height 2945
- Wheelbase 4880
- Ground Clearance 300
- Turning Circle Radius 9800
- Turning Circle Diameter 9800
- GVW 25000 kg
- Kerb Weight 7346 kg
- Fuel Tank Capacity 225
