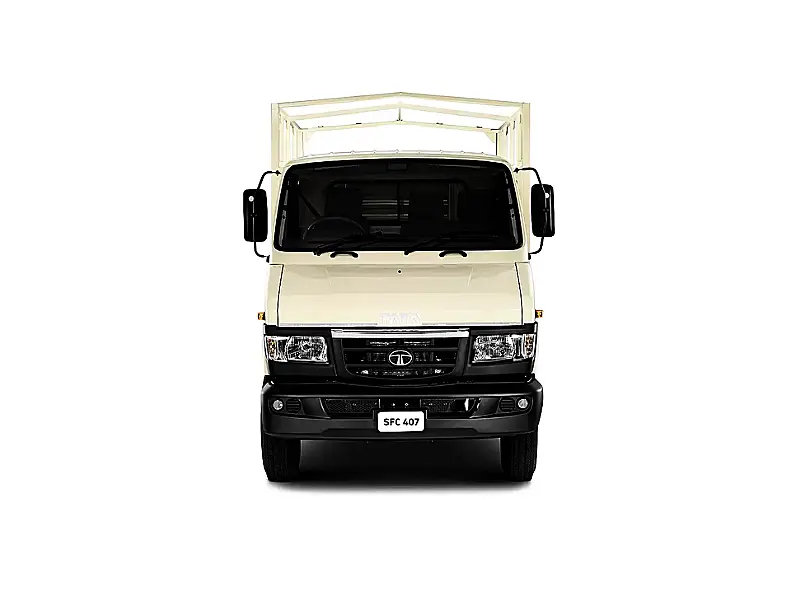

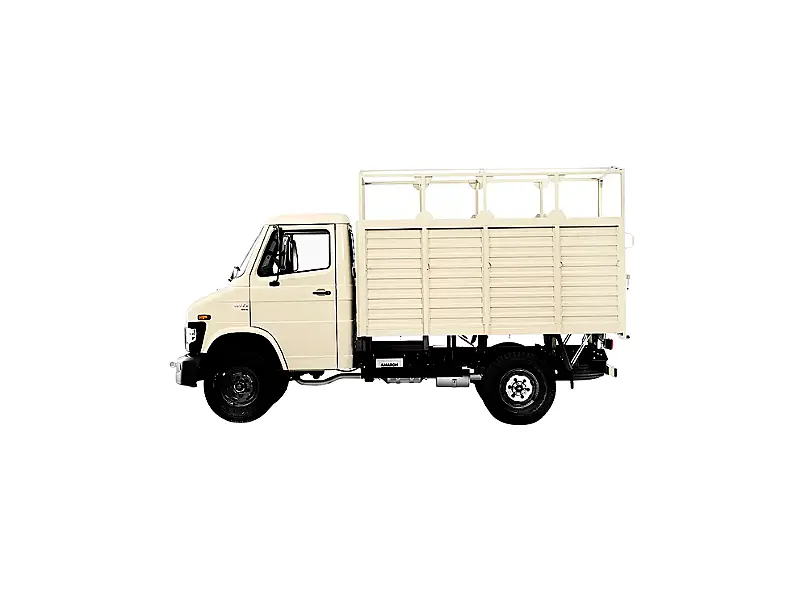

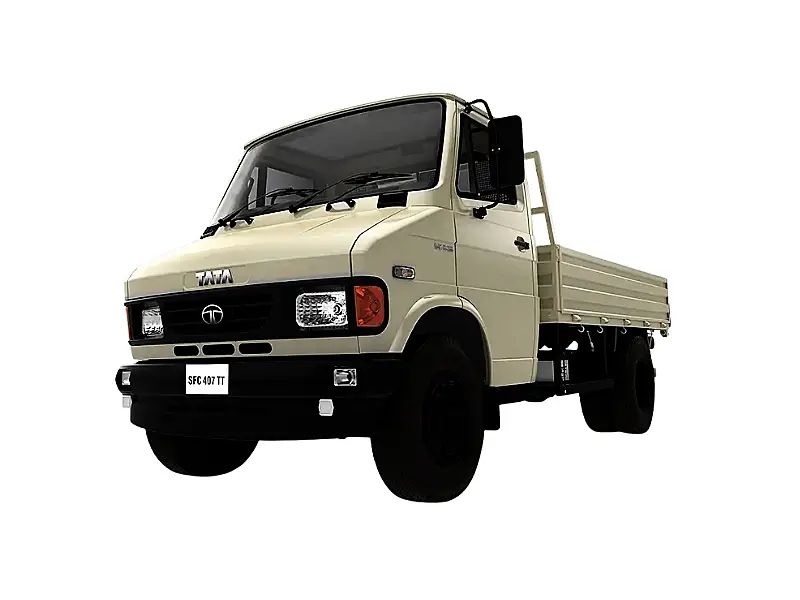

Tata SFC 407 Ex TT
Variants
Key Specifications of Tata SFC 407 Ex TT Truck
-
Engine Type
Tata 4 SP turbo intercooled, water-cooled direct injection diesel engine -
Max Torque
225 Nm (22.9 mkg) at 1500 – 1800 rpm -
No. of Tyres
6+1 -
Wheelbase (mm)
3100 -
Gross vehicle weight (Kgs)
5300 -
Fuel Type
Diesel
Specifications of Tata SFC 407 Ex TT
- Engine Type Tata 4 SP turbo intercooled, water-cooled direct injection diesel engine
- Engine capacity (cc) 2956
- Max engine output 55.2 kW (75 Ps) at 2800 rpm
- Max engine torque 225 Nm (22.9 mkg) at 1500 – 1800 rpm
- Emission norms Euro II
- Clutch Single plate dry friction type
- Gearbox GBS-18 synchromesh (PTO-provision and PTO fitted optional), 5F +1R
- Steering Manual
- SUSPENSIONFront Semi elliptical leaf spring
- Suspension Rear Semi elliptical leaf spring
- Shock absorber Hydraulic double acting telescopic type at front and rear
- FRAME Type Ladder type frame with rivetted / bolted cross members, side members are of channel section, depth: 180 mm (max), width: 55 mm
- Service brake Vacuum assisted dual circuit hydraulic with tandem master cylinder
- WHEELS & TYRES No 6+1
- Size 7.00R16-12PR – Radial tyres (Optional: 7.00 x 16-12PR diagonal ply)
- Wheelbase (mm) 3100
- Overall length (mm) 5050
- Max width (mm) 2006
- Kerb weight (Kg) 2025
- GVW (Kg) 5300
- Grade ability 22%
- Top speed (kmph) 102
- Minimum turning circle diameter in mm 12
