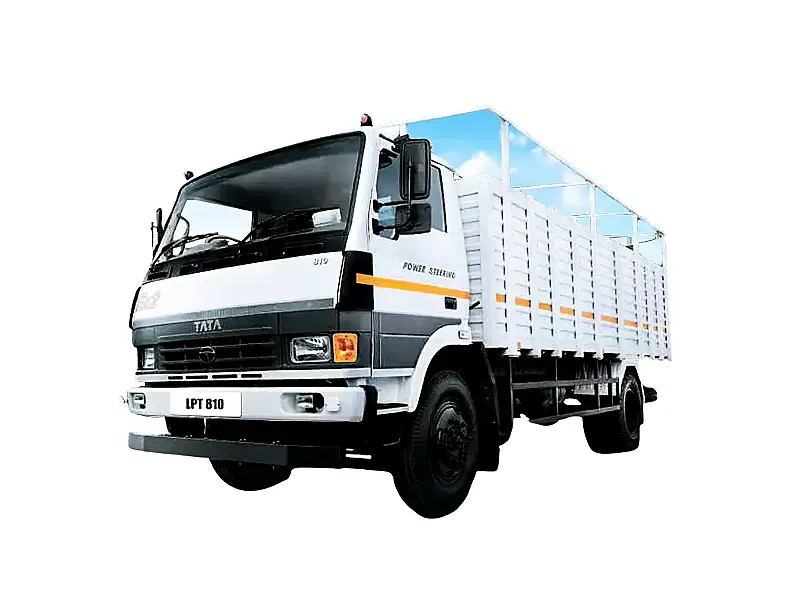

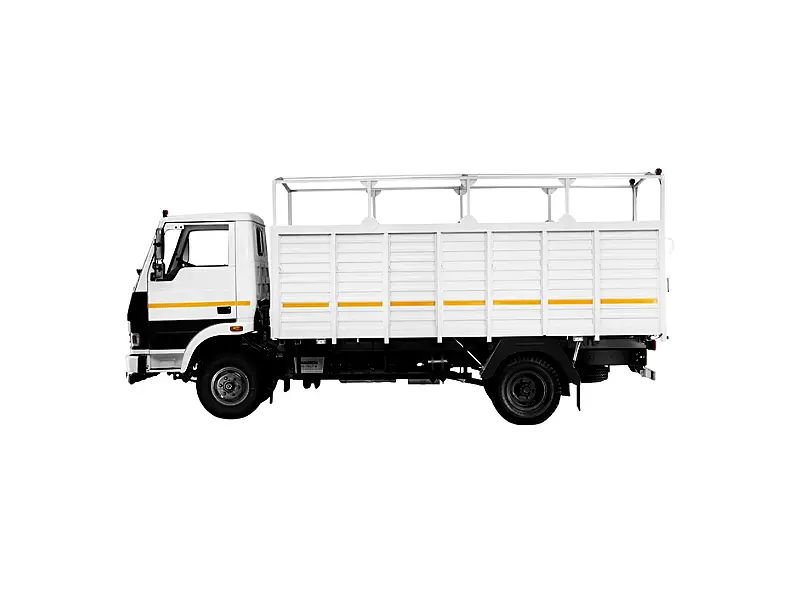

Tata LPT 810 Base

Specifications of Tata LPT 810 Base

• Engine 497 TCIC
• Engine Type water cooled Turbo-intercooled common rail direct injection engine
• Engine Capacity 3783 cc
• Max Engine Output 125 Ps @ 2400 rpm
• No of Cylinders 4 inline
• Cylinders / Displacement 4 cylinders, 3783 cc
• Max Speed 80 kmph
• Emission BS-III
• Torque 400 Nm @ 1300-1600 rpm
• Gradeability 30%
• Grade Restartability 24%
• No of Gears 6 Forward + 1 Reverse
• Gear Box GBS-550
• FGR 6.9
• Clutch Single plate dry friction type
• Clutch Lining Outside Diameter Integral hydraulic Power assisted.
• Brake - Front SCAM Brakes
• Brake - Rear SCAM Brakes
• Brake Drum Diameter 325 mm
• Suspension Semi-elliptical leaf springs at front and rear, with auxiliary springs at rear only
• Suspension - Front Semi-elliptical leaf springs
• Suspension - Rear Semi-elliptical leaf springs with auxiliary springs at rear only
• Shock absorber Hydraulic double acting telescopic type at front & rear
• No of Tyres Front - 2, Rear-4, Spare-1
• Tyre Size 7.50x16 -16 PR
• Wheel Rims 6.00 G x 16 SDC
• Axle - Front Heavy duty, Forged I beam. Reverse Elliot type
• Axle - Rear TATA RAS-104
• Axle Final ratio 4.125 : 1 (33/8)
• Frame Ladder type frame with riveted/ bolted cross members
• Frame Depth 200 mm
• Frame Width 822 mm
• Wheelbase 3400
• Ground Clearance Front Axle ~ 205 & Rear Axle ~ 211
• Overall Length 6195
• Overall Width 2255
• Overall Height (Unladen) 3120
• Overall Height (Laden) 3050
• Over Hang - Front 1275
• Over Hang - Rear 1450
• Turning Circle Radius 6.75 m
• Turning Circle Diameter 13.5 m
• Turning Clearance Circle Diameter 15.3 m
• Track Front 1650
• Track Rear 1587
• Angle of Departure 16 degree
• GCW 8720
• Kerb Weight 3690
• Max Permissible FAW 3160
• Max Permissible RAW 5560
• Payload 5030
• Fuel Tank Capacity 160 L
• Battery 100 Ah
• Vehicle Drive RHD
• Alternator 65 Amps
