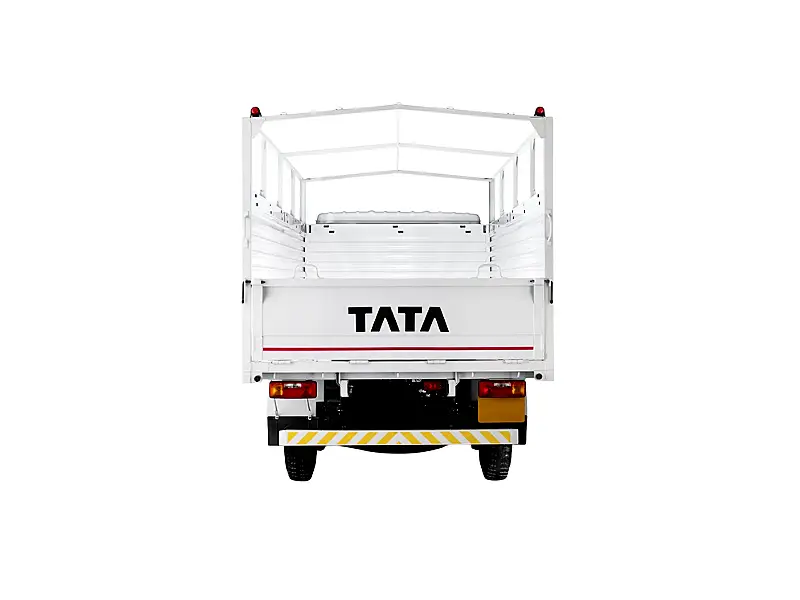

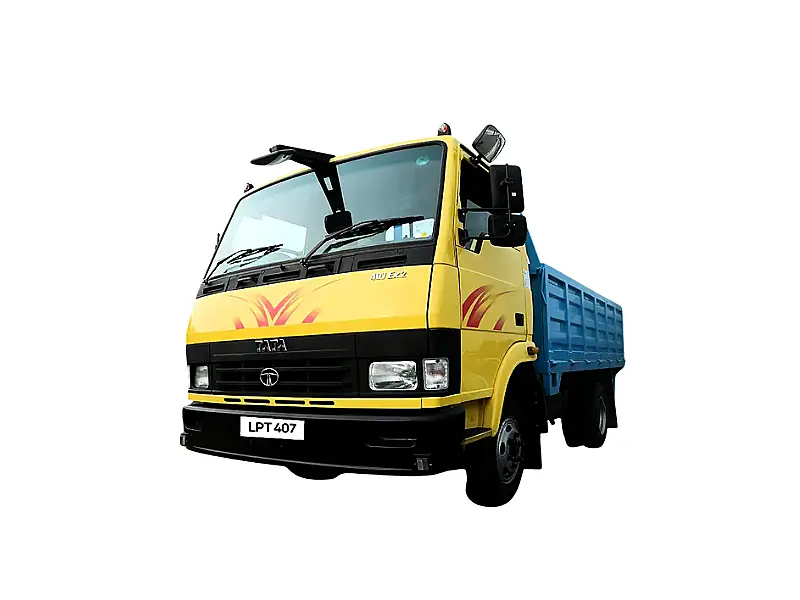

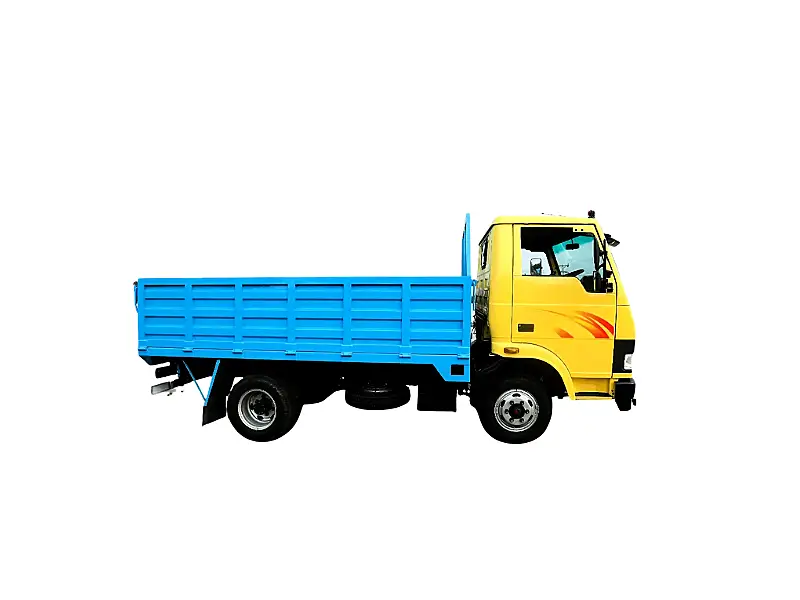

Tata LPT 407 Ex2

Specifications of Tata LPT 407 Ex2

• Engine Tata 497 SP Turbo
• Engine Type Water cooled direct injection Diesel Engine
• Engine Capacity 2956 cc
• Engine Power 75 Ps @ 2800 rpm
• Max Speed 87 kmph
• Emission BS2
• Torque 225 Nm @ 1500-1800 rpm
• Gradeability 26%
• Transmission Model GBS-27 Synchromesh
• No of Gears 5F + 1R
• Gear Box GBS-27 Synchomesh 5F+1R
• FGR 7.36
• Clutch 280mm Dia, Single plate dry friction
• Clutch Lining Outside Diameter 280mm
• Steering System Power
• Brakes Vaccum assisted Dual circuit Hydraulic with tandem master cylinder
• Brake - Front Drum
• Brake - Rear Drum
• Suspension - Front Semi-Elliptical Leaf Springs
• Suspension - Rear Semi-Elliptical Leaf Springs
• No of Tyres Front =2, Rear 4
• Tyre Size 7.50 x 16 - 16PR (Front - Rib, Rear - Lug)
• Wheel Rims 6G x 16 SDC
• Size & Ply rating 6.50 x 16 - 16PR Diagonal Ply
• Axle - Front 2535 kg
• Axle - Rear Single reduction, hypoid gears, fully Floating axle shafts & 3715 kg
• Axle Final ratio 4.57
• Frame Ladder type frame with riveted/ bolted cross members Side members are of channel section Depth : 200 mm (max) Width : 60 mm and Thickness : 5mm
• Length 5125 mm
• Width 2132 mm
• Height 2358 mm
• Wheelbase 2775 mm
• Overall Length 5425 (w/o Loadbody) mm
• Overall Width 2132 mm
• Turning Circle Diameter 10.2 m
• Track Front 1650 mm
• Track Rear 1587 mm
• Angle of Departure 30 degree
• GVW 3000
• Kerb Weight 2530 kg & 2530 kg
• Max Permissible FAW 1200
• Max Permissible RAW 1800
• Payload 3720 kg & 470 kg
• Fuel Tank Capacity 90 L
• Cabin Day Cab
• Cargo Box Dimensions 10 ft
• Seats D+2
