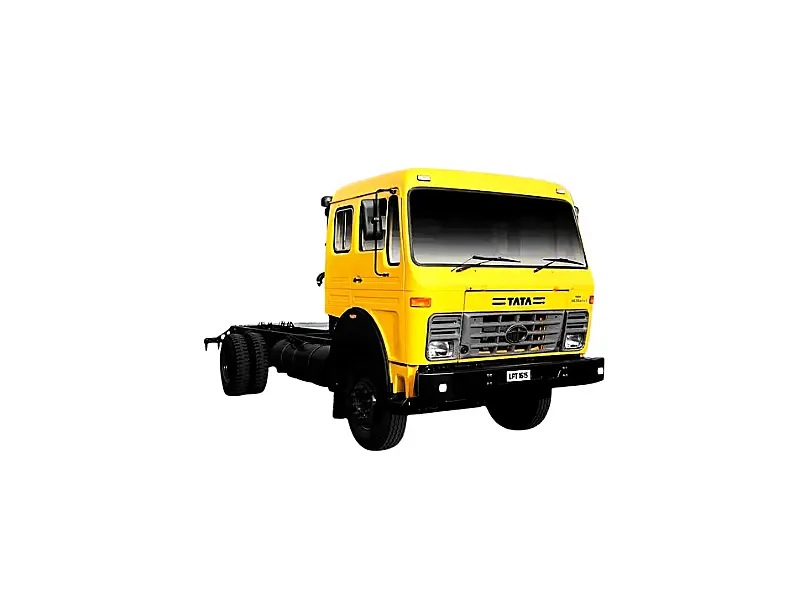

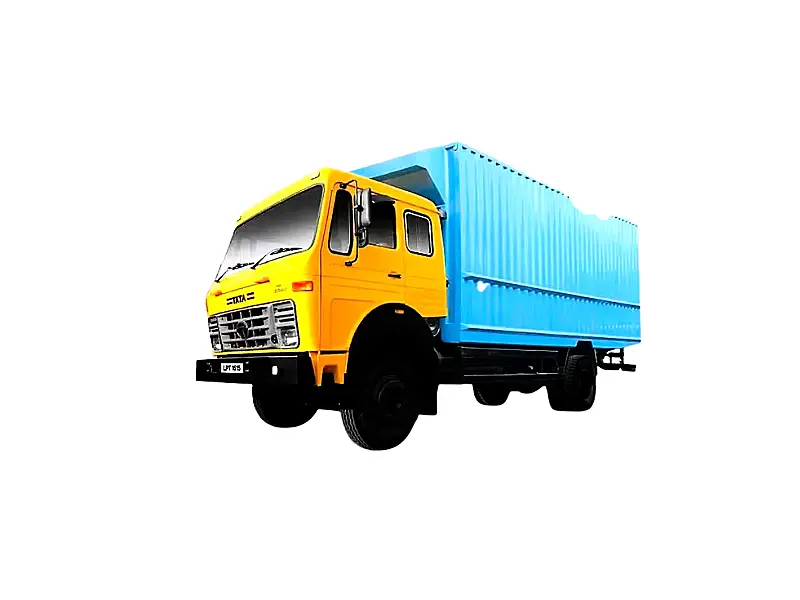

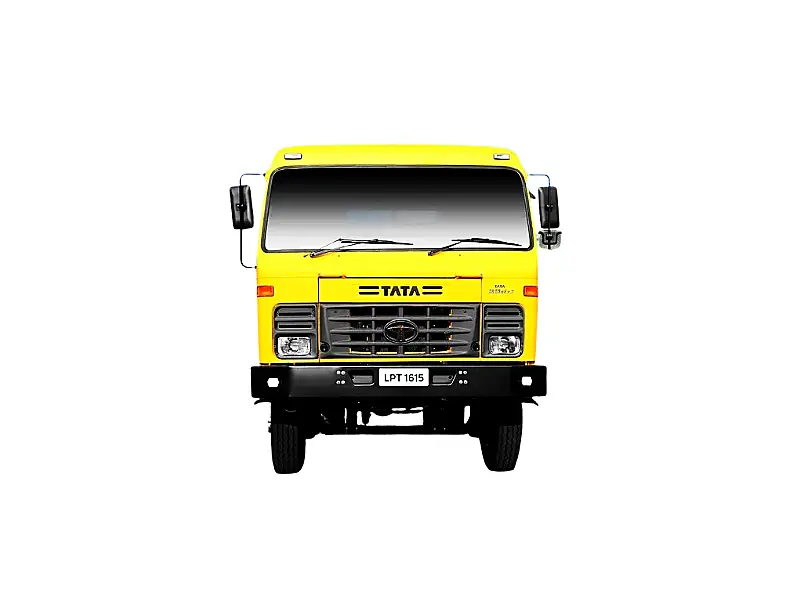

Tata LPT 1615 Base
Variants
Key Specifications of Tata LPT 1615 Base Truck
-
Fuel Tank Capacity
350 -
Engine Type
Water cooled direct injection Turbo charged intercooled Diesel Engine -
Payload Capacity
11810 Kg -
Battery Capacity
150Ah -
Gross vehicle weight (Kgs)
16200 kg -
Wheelbase (mm)
5195 mm and 4795 mm
Specifications of Tata LPT 1615 Base
- Engine CUMMINS 6BT 5.9
- Engine Type Water cooled direct injection Turbo charged intercooled Diesel Engine
- Engine Capacity 5883
- Engine Power 146 HP @ 2500 rpm
- Max Speed 81
- Emission BS I
- Torque 500 Nm at 1300-1700 rpm
- Gradeability 25%
- Gear Box TATA G 600, 6F + 1 R
- Clutch 352
- Brakes Dual Circuit, Full Air S-CAM Brake System
- Suspension Semi Elliptical Multi-Leaf Spring at FRONT and REAR
- Tyre Size 10.00 x 20.00-16 PR
- Axle - Rear RA-109RR
- Axle Final ratio 5.85
- Wheelbase 5195 mm and 4795 mm
- Turning Circle Diameter 20.8 mm
- GVW 16200 kg
- Kerb Weight 5825 kg
- Max Permissible FAW 6000 kg
- Max Permissible RAW 10200 kg
- Fuel Tank Capacity 350
- Cabin Ventilation NA
