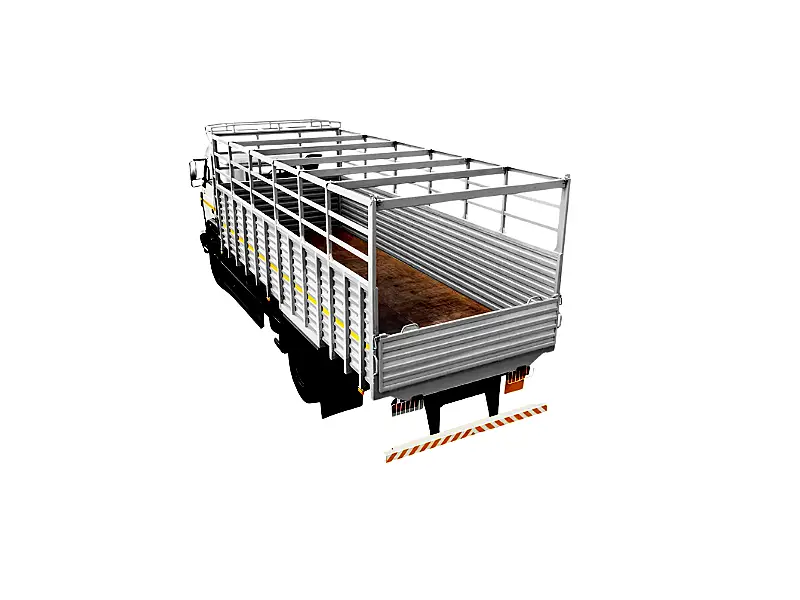

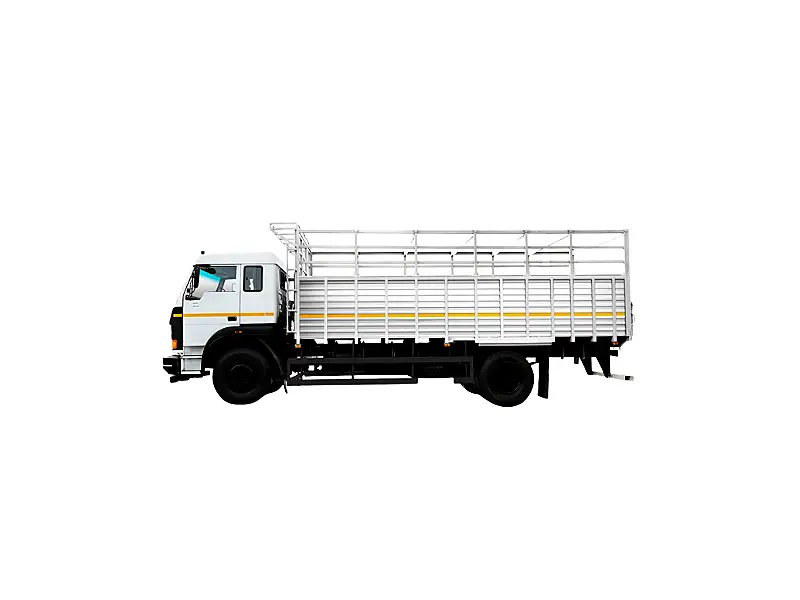

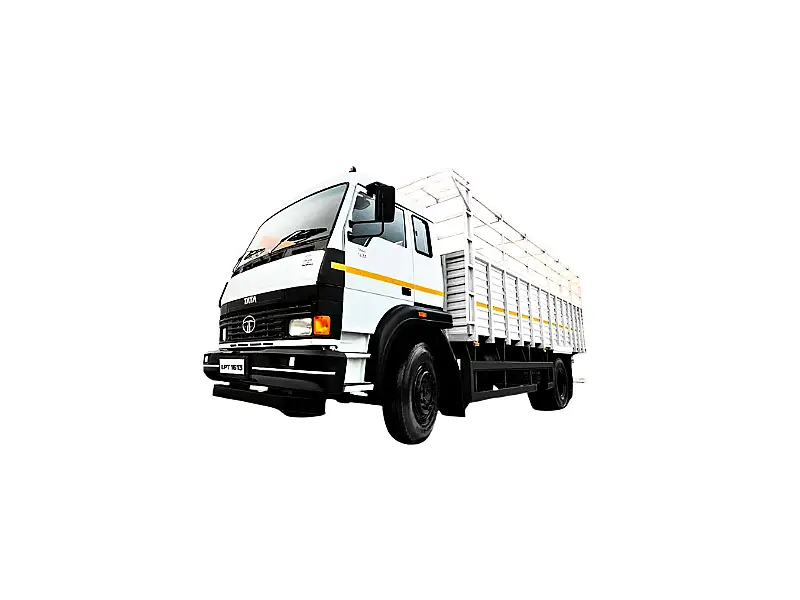

Tata LPT 1613 Base
Variants
Key Specifications of Tata LPT 1613 Base Truck
-
Fuel Tank Capacity
225 -
Engine Type
Water cooled direct injection Turbo charged intercooled Diesel Engine -
Wheelbase (mm)
5195 mm and 4855 mm -
Gross vehicle weight (Kgs)
16200 kg -
Payload Capacity
11710 Kg -
Battery Capacity
150Ah
Specifications of Tata LPT 1613 Base
- Engine 697 TC/IC Bharat Stage III- COMMON RAIL
- Engine Type Water cooled direct injection Turbo charged intercooled Diesel Engine
- Engine Capacity 5675
- Engine Power 136 HP at 2500 rpm
- Max Speed 80
- Emission BS III
- Torque 490 Nm at 1500 rpm
- Gradeability 19.1%
- Gear Box TATA GBS 600, 6F + 1 R
- Clutch 352
- Brakes Full Air S-Cam with Auto slack adjuster, with ABS
- Suspension Semi elliptical leaf spring at front end
- Tyre Size 10 R 20- 16PR
- Axle - Rear RA-109RR
- Axle Final ratio 5.86
- Wheelbase 5195 mm and 4855 mm
- Ground Clearance 227 mm
- Turning Circle Diameter 16.8 mm
- GVW 16200 kg
- Kerb Weight 4990 kg
- Max Permissible FAW 6000 kg
- Max Permissible RAW 10200 kg
- Fuel Tank Capacity 225
- Cabin Ventilation Non-AC
