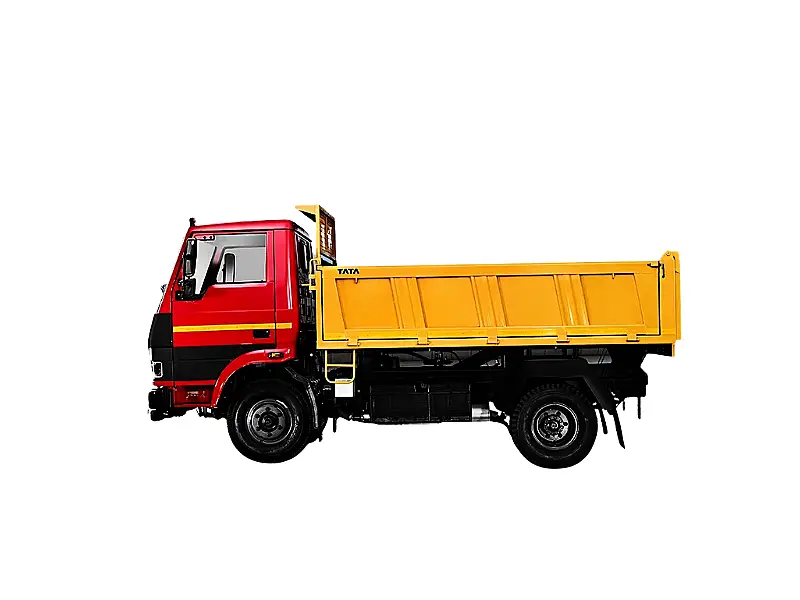

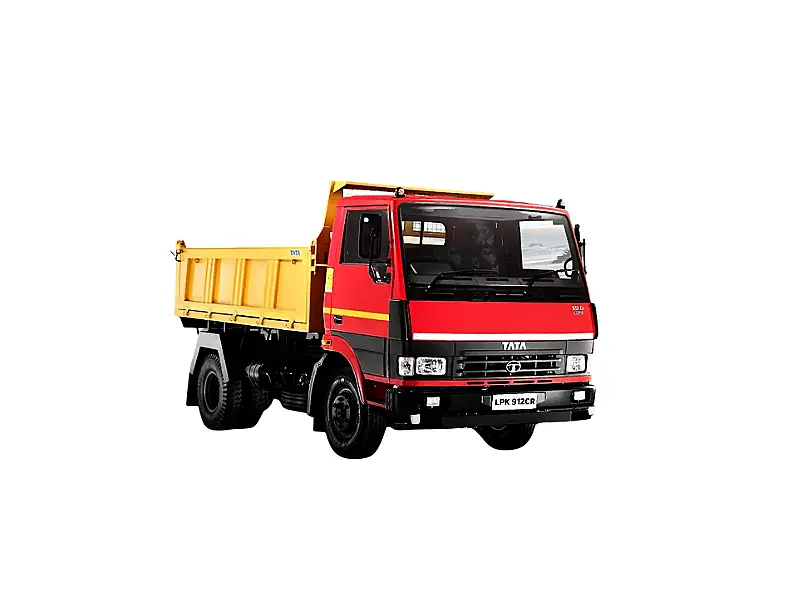

Tata LPK 912 Base
Variants
}
Key Specifications of Tata LPK 912 Base Truck
-
Fuel Tank Capacity
90 L -
Engine Type
TATA 497 CR TCIC, water cooled direct common rail injection diesel -
Wheelbase (mm)
2775 mm -
Gross vehicle weight (Kgs)
9600 kg -
Battery Capacity
100 Ah -
Payload Capacity
6300 Kg
Specifications of Tata LPK 912 Base
- Engine Tata 497 TCIC CR
- Engine Type TATA 497 CR TCIC, water cooled direct common rail injection diesel
- Engine Capacity 3783 cc
- Max Engine Output 125 Ps @ 2400 rpm
- Max Speed 76 kmph
- Emission BS III
- Torque 400 Nm @ 1300-1600 rpm
- Gradeability 40%
- Gear Box GBS-40 Synchromesh 5F+1R
- Clutch 310mm Dia, Single plate dry friction
- Steering System Power steering
- Brakes Dual Circuit full air S-Cam brakes
- Suspension - Front Semi-Elliptical Leaf Springs
- Suspension - Rear Semi-Elliptical Leaf Springs
- Shock absorber Hydraulic double acting telescopic type at front and rear
- No of Tyres 6+1
- Tyre Size 8.25 x 16 - 16PR (Front - Rib, Rear - Lug)
- No of Wheels 6+1
- Axle - Rear Single reduction, hypoid gears, full floating axle shafts. Axle Ratio : 4.857
- Frame Ladder type heavy duty frame with riveted/bolted cross members Side members are of channel section Depth -200 mm (max) Flange Width -60mm Thickness 5mm
- Length 5230 mm
- Width 2188 mm
- Height 2418 mm
- Wheelbase 2775 mm
- Overall Length 5230 mm
- Max Width LB 2188 mm
- Turning Circle Radius 10.2 m
- Turning Circle Diameter 10.2 mm
- GVW 9600 kg
- GCW 3375
- Kerb Weight 6225
- Fuel Tank Capacity 90 L
- Cabin Day Cab
- Cargo Box Dimensions 3.5 Cu.M
- Seats D+1
- Warranty 1 Year or 64000 kms, whichever is earlier
