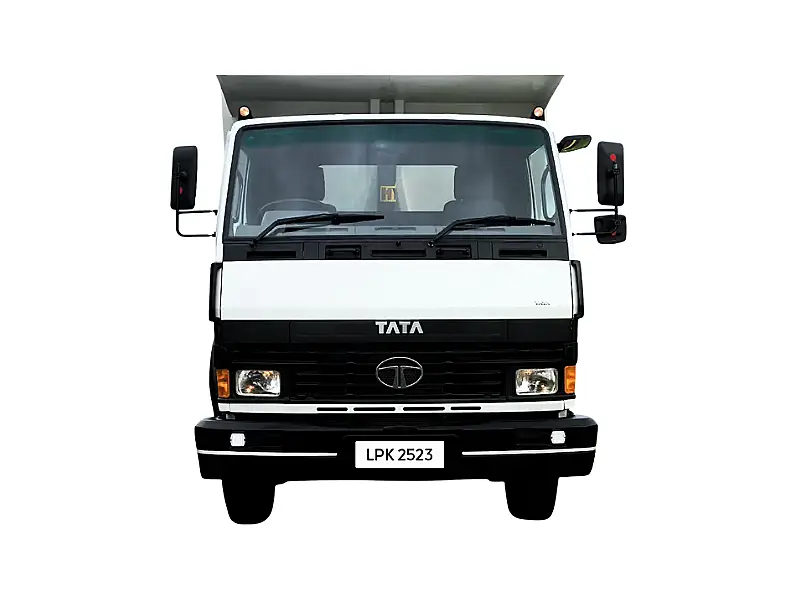

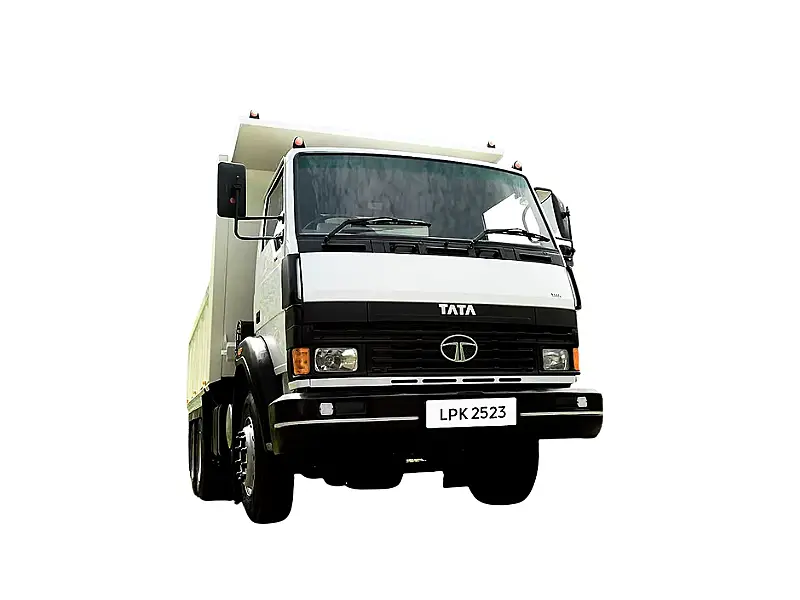

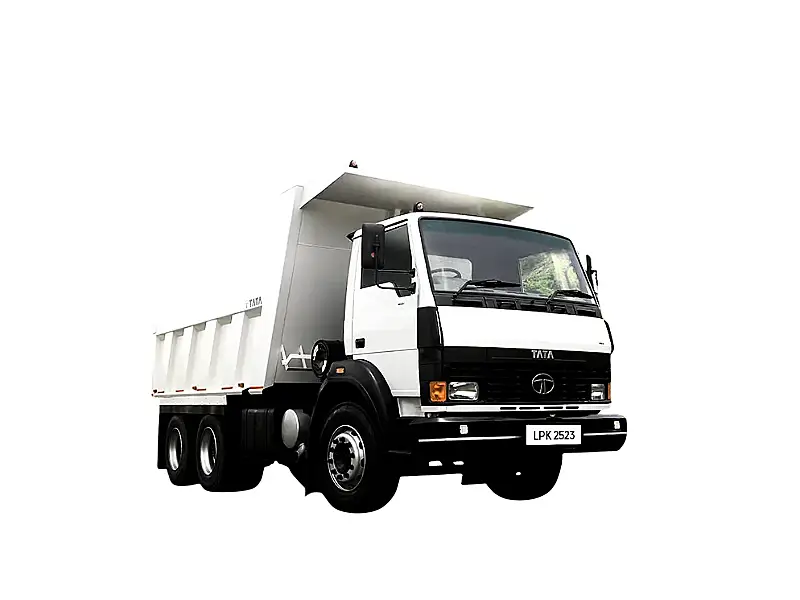

Tata LPK 2523 Base
Variants
Key Specifications of Tata LPK 2523 Base Truck
-
Gross vehicle weight (Kgs)
25000 kg -
Wheelbase (mm)
3880 mm -
Fuel Tank Capacity
365 Liters (std.) / (365+260)=625 liters (Optional) -
Battery Capacity
150 Ah -
Payload Capacity
19000 Kg -
Seating Capacity
D+2
Specifications of Tata LPK 2523 Base
- Engine CUMMINS 6B5.9
- Engine Type Water cooled direct injection Turbo charged intercooled Diesel Engine
- Body Type LPK 2523 HD CAB NA SRT 10X20 NT
- Engine Capacity 5883
- Engine Power 215 HP at 2500 rpm
- Emission BS III
- Torque 800 Nm at 1500 rpm
- Gradeability 31%
- Gear Box G 1150, 8F+1C+1R
- Clutch 380
- Steering System Hydraulic Power Steering
- Brakes Full Air S-Cam with Automatic Adjuster
- Suspension Semi elliptical leaf spring at front and inverted TML bogie suspension at rear
- Suspension - Front Semi elliptical leaf spring
- Suspension - Rear Inverted TML bogie suspension
- Tyre Size 10.00 X 20-16PR
- Axle - Rear RA-109SRT with inter-axle differential lock
- Axle Final ratio 6.14
- Length 6705
- Width 2430
- Height 3024 mm
- Wheelbase 3880 mm
- Ground Clearance 235 mm
- Turning Circle Radius 8500 mm
- GVW 25000 kg
- Kerb Weight 7677 kg
- Fuel Tank Capacity 365 Liters (std.) / (365+260)=625 liters (Optional)
- Cabin Ventilation NA
- Body Option 16 Cum
