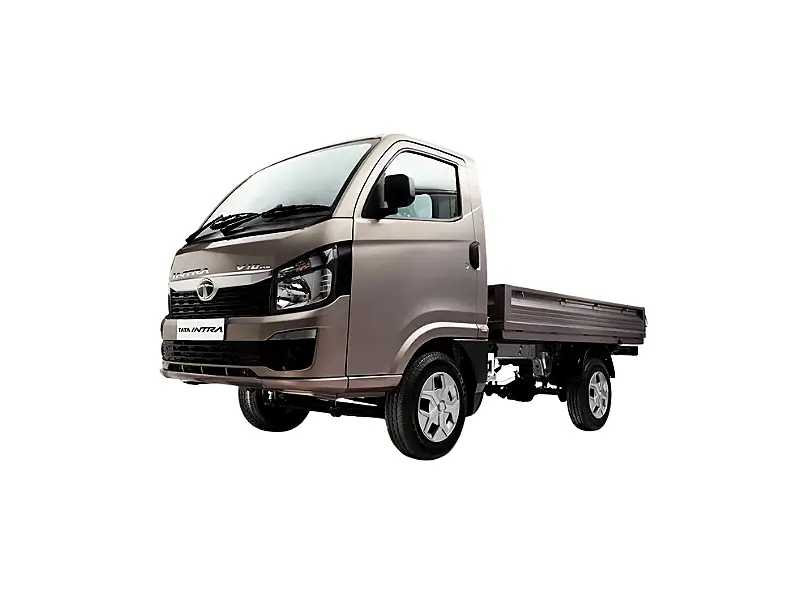

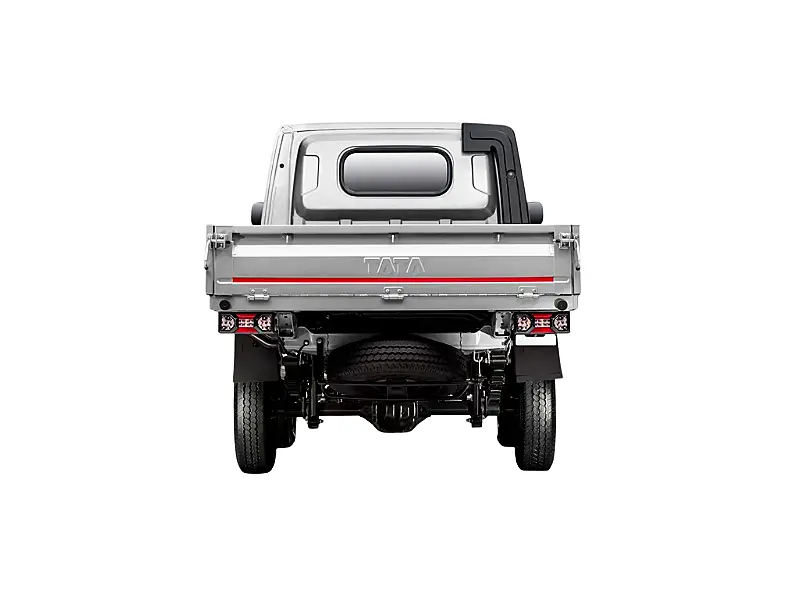

Tata Intra V20
Variants
}
Key Specifications of Tata Intra V20 Truck
-
Fuel Tank Capacity
35L -
Power Steering
Hydraulic Power assisted Steering -
Max Torque
140 @ 1300-3000 -
Payload Capacity
1100 kg -
Gross vehicle weight (Kgs)
2300 kg -
Wheelbase (mm)
2250 mm
Specifications of Tata Intra V20
- Engine 1396 cc
- Engine Type Water cooled Direct Injection Common Rail Diesel Engine with Exhaust Gas Recirculation and Oxidation Catalyst with Turbo charger and Intercooler with Onboard Diagnostics (OBD-II)
- Body Type CLB
- Engine Capacity 1396cc
- Engine Power 52KW @ 4000 RPM
- Max Speed 80 km/h
- Emission BS4
- Torque 140 @ 1300-3000
- Gradeability 30%
- Grade Restartability 23%
- Gear Box GBS 65 Synchromesh 5F + 1R
- Clutch Single plate dry friction diaphragm type
- Steering System Hydraulic Power assisted Steering
- Brakes Front - Disc brakes; Rear - Drum brakes
- Brake - Front Disc
- Brake - Rear Drum
- Suspension - Front Semi elliptical leaf spring
- Suspension - Rear Semi elliptical leaf spring
- Tyre Size 165/R14
- Length 4282 mm
- Width 1639 mm
- Height 1918 mm
- Wheelbase 2250 mm
- Ground Clearance 170 mm
- Turning Circle Radius 4.75
- Track Front 1390 mm
- Track Rear 1323 mm
- Length 2450 mm
- Width 1540 mm
- Height 400 mm
- GVW 2300 kg
- Kerb Weight 1100 kg
- Payload 1100 kg
- Fuel Tank Capacity 35 litres
- Cargo Box Dimensions (2.45x1.54x0.40)
