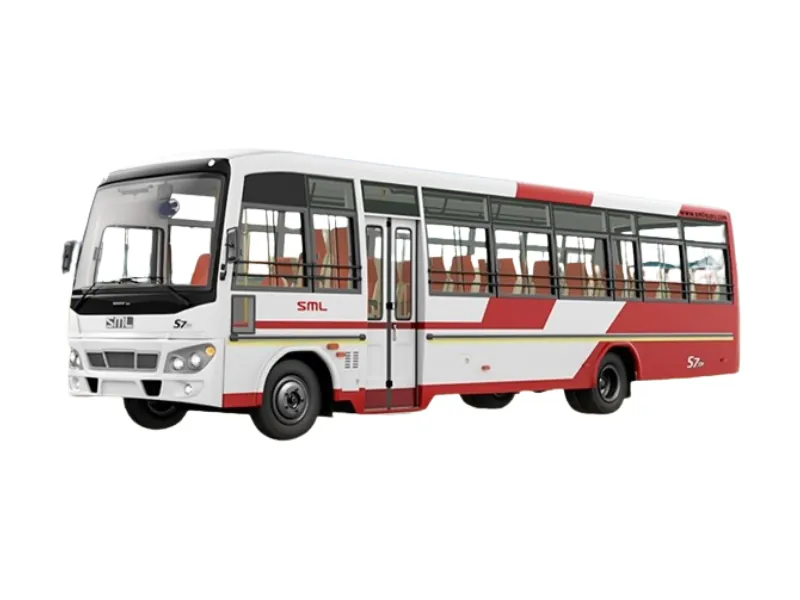

SML ISUZU S7 Staff Bus Base
Variants
Key Specifications of SML ISUZU S7 Staff Bus Base Truck
-
Fuel Tank Capacity
90Ltrs/ 180 Ltr. (optional) -
Max Power
75KW@2600 RPM / 85KW @2600 RPM (Option available) -
Max Torque
315 Nm @ 1600 ± 200 RPM/400 NM @ 1500 ± 100 rpm -
Wheelbase (mm)
3335 / 4240 / 5100 -
Seating Capacity
WB 3335: 30+D(3x2) & 25+D+CD(2x2), WB4240: 42+D(3x2) & 31+D+CD (2x2) & 33+D+CD(2x2), WB 5100: 52+D(3x2) , 39+D+CD(2x2) , 37+D+CD(2x2) available -
Fuel Type
Diesel
Specifications of SML ISUZU S7 Staff Bus Base
- Wheelbase (mm) 3335 / 4240 / 5100
- Torque (Nm) 315 Nm @ 1600 ± 200 RPM/400 NM @ 1500 ± 100 rpm
- Engine BS-III/BS-IV/BSVI
- Power (KW ) 75KW@2600 RPM / 85KW @2600 RPM (Option available)
- Clutch Single Plate Dry Diaphragm Type
- Gear Box Synchromesh Manual 6 Forward and 1 Rear / Synchromesh Manual 5 Forward and 1 Rear (optional)
- No. of tyres 6+1
- Tyre Size (inch) 7.50 X 16 - 16PR / 8.25 x 16- 16PR (Option avaialble)
- Front & Rear Suspension Semi-Elliptical Multi Leaf Springs
- Shock absorber Available
- Min. Ground Clearence (mm) 208 / 228
- Model S7 Staff Bus
- No. Of Seats WB 3335: 30+D(3x2) & 25+D+CD(2x2), WB4240: 42+D(3x2) & 31+D+CD (2x2) & 33+D+CD(2x2), WB 5100: 52+D(3x2) , 39+D+CD(2x2) , 37+D+CD(2x2) available
- Type of Seats Staff
- No. of seats (High Back seats) WB 4240:30+D(2x2) , WB 5100 : 37+D+CD (2x2)
- Steering Power steering
- Adjustable Driver Seat Yes
- Tiltable Steering Yes
- Brakes Air Bakes (Optional in 3335 mm WB) / Hydraulic (optional)
- Parking brakes Yes
- Anti Roll bar Yes
- Battery 12V
- Fuel tank capacity (litres) 90Ltrs/ 180 Ltr. (optional)
- Engine and Transmission 4 - Cylinder In - line Common Rail Direct Injection Diesel Turbo-charger with Inter-cooler
- Bus body Fully Built Up / Chassis available
