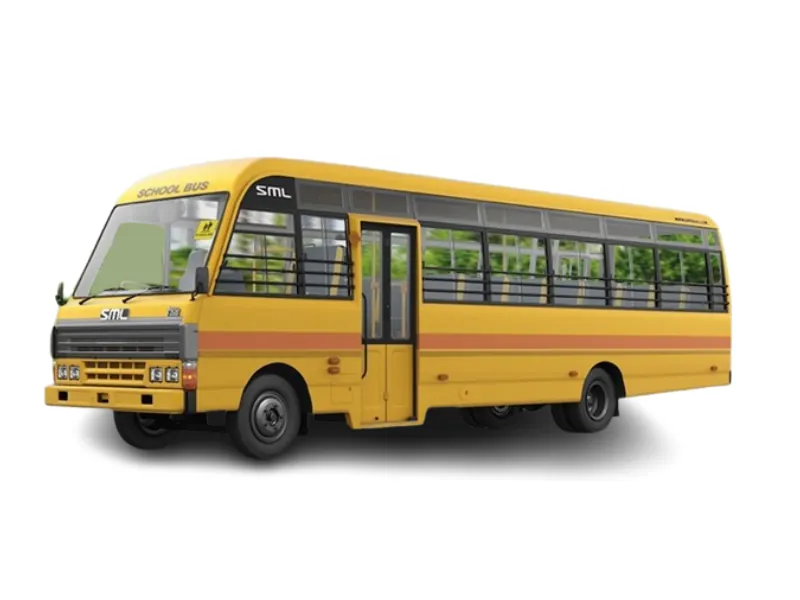

SML ISUZU Prestige School Bus Base

Specifications of SML ISUZU Prestige School Bus Base

• Wheelbase (mm) 2815 / 3335
• Torque (Nm) 315 Nm @ 1500 rpm
• Power (KW ) 75 kW @ 3000 rpm Mech.
• Clutch Single Plate Dry Diaphragm Type
• Gear Box Synchromesh Manual 5 Forward and 1 Rear
• No. of Tyres 6+1
• Tyre Size (inch) 7.50 X 16 - 16PR / Optional 8.25 x 16- 16PR
• Front & Rear Suspension Semi Elliptical with Multi leaf Springs
• Shock absorber Available
• Min. Ground Clearence (mm) 208 / 228
• Model Prestige School Bus/Prestige School Bus N
• No. Of Seats WB 2815 :26 (3x2) & 19+D+CD (2x2) / WB3335 :32 (3x2) , 25+D+CD(2x2)
• Type of Seats Standard School Type Seats
• No. of seats (School seats) WB 2815 :26 (3x2) & 19+D+CD (2x2) / WB3335 :32 (3x2) , 25+D+CD(2x2)
• Adjustable Driver Seat Yes
• Tiltable Steering Yes
• Brakes Hydraulic Vacuum assisted
• ABS NON ABS
• Battery 12V
• Fuel tank capacity (litres) 90Ltr
• Engine and Transmission 4 - Cylinder In - line Common Rail Direct Injection Diesel Turbo-charger with Inter-cooler
• Bus body Fully Built Up / Chassis available
