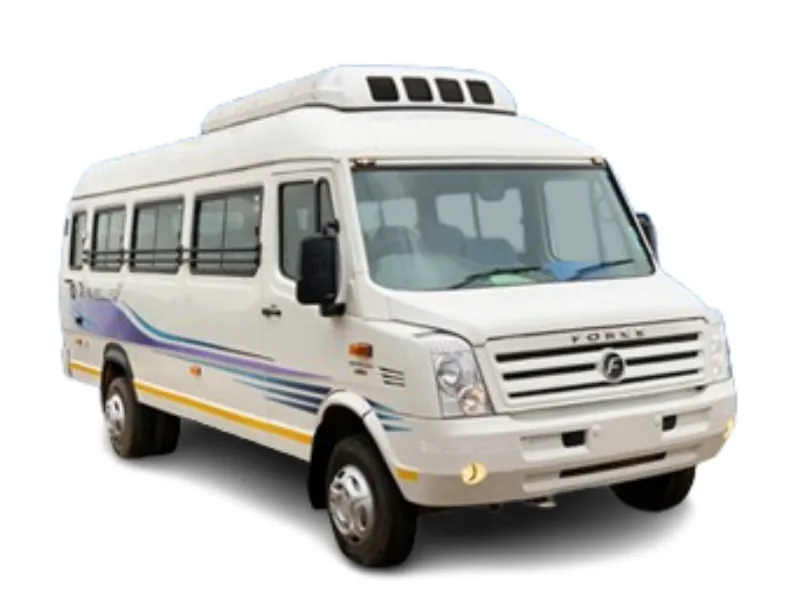

Force Motors Traveller T26 Base
Variants
Key Specifications of Force Motors Traveller T26 Base Truck
-
Engine Type
5 cylinder common rail -
Max Power
85 kW (114hp)@2800 rpm -
Max Torque
320 Nm @ 1400-2400 rpm -
Wheelbase (mm)
4020 -
Fuel Tank Capacity
70 Liters
Specifications of Force Motors Traveller T26 Base
- Engine FM 3.2 CR
- Emission BS-IV
- Type 5 cylinder common rail
- Displacement 3245 cc
- Max Output 85 kW (114hp)@2800 rpm
- Max Torque 320 Nm @ 1400-2400 rpm
- Type Synchromesh
- No. of gears 5 Forward, 1 Reverse
- Front Axle Dead Rigid
- Rear Axle Live Rigid
- Front Suspension Semi elliptical leaf springs with hydraulic shock absorbers and anti roll bar
- Rear Suspension Semi elliptical leaf springs with hydraulic shock absorbers and anti roll bar
- Turning Radius 7
- BRAKES TYPE Hydraulic, Dual circuit, vacuum assisted with auto slack adjuster (ABS with EBD – optional)
- Front Brakes Disc Brakes
- Rear Brakes Disc Brakes
- Parking Brakes Mechanical on Transmission
- Tyre Size 215/75 R15″
- Wheel Base (mm) 4020
- Overall length (mm) 6770
- Overall Width (mm) 2225
- Overall height (mm) 2670 (2870 with AC)
- Overhang Front (mm) 900
- Overhang Rear (mm) 1850
- Ground Clearance (mm) 190
- Max. Permissible FAW 2080
- Max. Permissible RAW 3670
- Max. Permissible GVW 5750
- Fuel Tank 70 Liters
- 70 Liters 26+D
