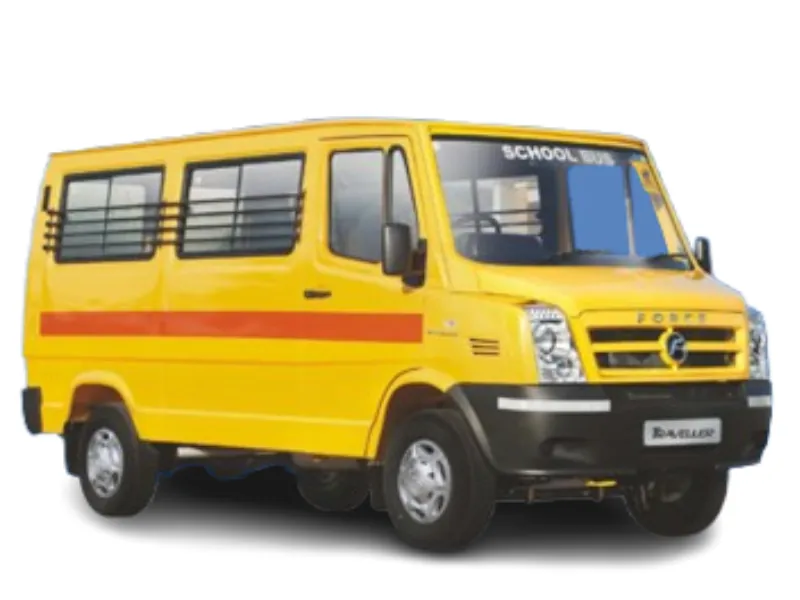

Force Motors Traveller School Bus 3050 Base
Variants
Key Specifications of Force Motors Traveller School Bus 3050 Base Truck
Specifications of Force Motors Traveller School Bus 3050 Base
- Engine FM 2.6 CR
- Emission BS-IV
- Engine Type 4 Cylinder, Common Rail
- Displacement 2596 cc
- Max Output 67kW (90hp) @ 3800rpm
- Transmission Type Synchromesh
- No of Gears 5 Forward, 1 Reverse (5th Gear Overdrive
- Front Axle Dead Rigid, I-Beam (Reverse Elliot Type)
- Rear Axle Live Rigid
- Front Suspension Semi elliptical leaf springs with hydraulic shock absorbers and anti roll bar
- Rear Suspension Semi alliptical leaf springs with hydraulic shock absorbers
- Turning Radius 6
- BRAKES TYPE Hydraulic, Dual circuit, vacuum assisted ABS with EBD
- Front Brakes 4 – Piston, ventilated, disc brakes with wear indicator
- Rear Brakes Drum Brakes
- Parking Brakes Mechanical on rear wheels
- Wheels & Tyres 215/75 R 15″
- Wheel Base (mm) 3050
- Overall length (mm) 4935
- Overall Width (mm) 1900
- Overall height (mm) 2265 (2550 HR)
- Overhang Front (mm) 900
- Overhang Rear (mm) 985
- Ground Clearance (mm) 210
- Max. Permissible FAW 1710
- Max. Permissible RAW 1800
- Max. Permissible GVW 3510
- Fuel Tank 70 ltrs
- Seating Capacity 15 A+D
- Seating Type Standard
