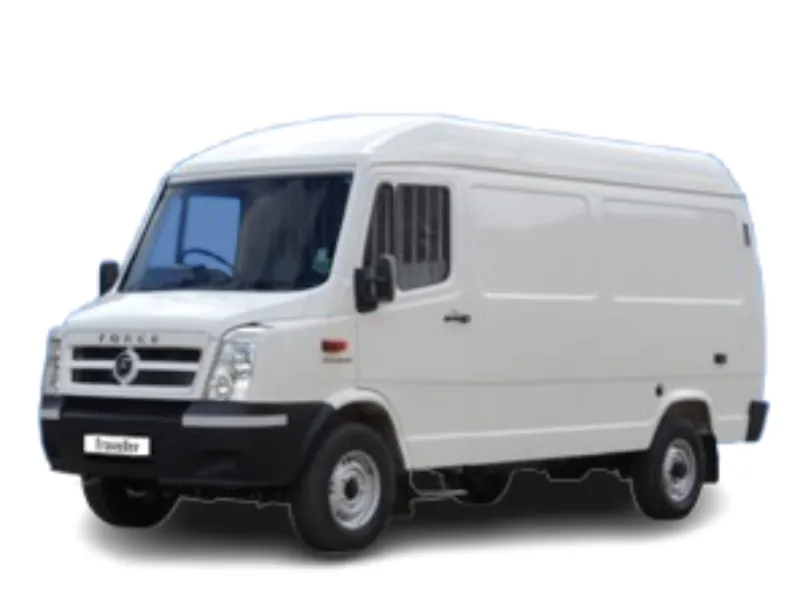

Force Motors Traveller Delivery Van TG 2600 F (C)
Variants
Key Specifications of Force Motors Traveller Delivery Van TG 2600 F (C) Truck
-
Fuel Tank Capacity
140 litres -
Engine Type
Spark Ignition Engine -
Max Power
59.5 kW (80 hp)@ 3800 rpm -
Max Torque
180 Nm @ 2000 – 2400 -
Wheelbase (mm)
3050 -
Payload Capacity
1460
Specifications of Force Motors Traveller Delivery Van TG 2600 F (C)
- Engine Model TG 2600 F (C)
- Emission BS-IV
- Engine Type Spark Ignition Engine
- Displacement 2596 cc
- Max Output 59.5 kW (80 hp)@ 3800 rpm
- Max Torque 180 Nm @ 2000 – 2400
- Transmission Type Synchromesh
- No of Gears 5 Forward, 1 Reverse, 5th Gear Overdrive
- Front Axle Dead Rigid, I-Beam, Reverse Elliot Type
- Rear Axle Live Rigid
- Front Suspension Semi Elliptical Leaf Springs With Hydraulic Shock Absorbers and Anti Roll Bar
- Rear Suspension Semi Elliptical Leaf Springs With Hydraulic Shock Absorbers
- Turning Radius 6.0
- Service Brakes Hydraulic, dual circuit, vacuum assisted,(ABS with EBD – optional)
- Front Brakes 4-Piston, ventilated, disc brakes with wear indicator
- Rear Brakes Drum brakes
- Parking Mechanical on rear wheels
- Wheels & Tyres Size 215/75 R15″
- Wheel Base (mm) 3050
- Overall length (mm) 4935
- Overall Width (mm) 1975
- Overall height (mm) 2550
- Cargo Box (L x W x H) 2820 X 1680 X 1830
- Ground Clearance (mm) 210
- Max. Permissible GAW 3510
- Kerb Weight 2050
- Rated Payload 1460
- Fuel Tank 140 litres
- Seating Capacity D + 1
