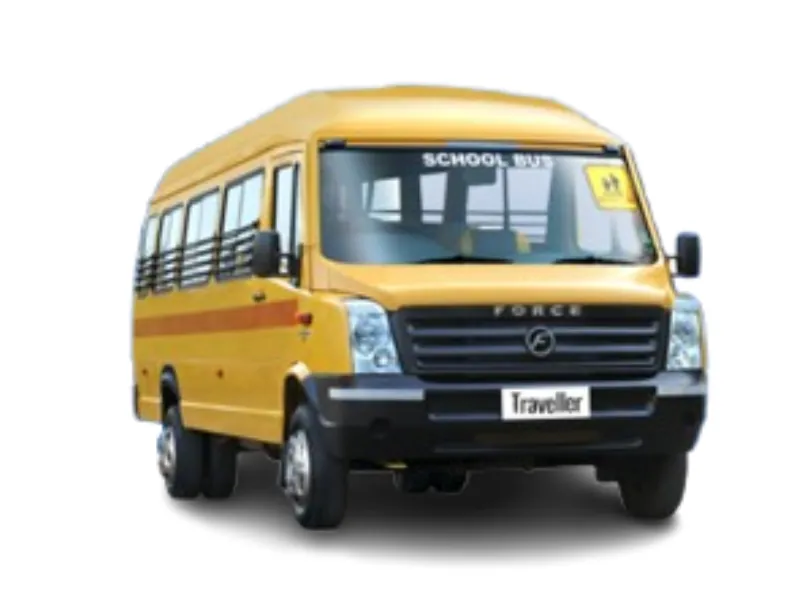

Force Motors Traveller 26 Diesel 1
Variants
Key Specifications of Force Motors Traveller 26 Diesel 1 Truck
-
Max Power
85 kW (115 hp) @ 2800 rpm -
Max Torque
320 Nm@ 1400-2400 rpm -
Fuel Tank Capacity
70 Liters -
Wheelbase (mm)
4020 -
Power Steering
Yes -
Gross vehicle weight (Kgs)
5750
Specifications of Force Motors Traveller 26 Diesel 1
- Fuel Type Diesel
- Engine FM 3.2 CR
- Emission BS-IV
- Engine Type 5 Cylinder Common Rail
- Displacement 3245 cc
- Max output 85 kW (115 hp) @ 2800 rpm
- Max Torque 320 Nm@ 1400-2400 rpm
- Transmission Type Synchromesh
- No of Gears 5 Forward, 1 Reverse
- Front Axle Dead Rigid I-Beam (Reverse Elliot Type)
- Rear Axle Live Rigid
- Front Suspension Semi Elliptical Leaf Springs with Hydraulic Telescopic Double Acting (Front & Rear) and Anti Roll Bar
- Rear Suspension Semi Elliptical Leaf Springs with with Hydraulic Telescopic Double Acting (Front & Rear) and Anti Roll Bar
- Turning Radius 7.0
- BRAKE Type Hydraulic, dual circuit, vacuum assisted, ABS with EBD
- Front Brake Ventilated Brake Disc
- Rear Brake Ventilated Brake Disc
- Parking Mechanical
- Wheel Size Front – Two, Rear – Four & Spare – One
- Wheelbase 4020
- Overall Length (mm) 6770
- Overall Width (mm) 2225
- Overall height (mm) 2670 (2870 with AC)
- Ground Clearance (mm) 190
- Max. Permissible GVW 5750
- Fuel Tank Capacity 70 Liters
- Seating Capacity 26+D
