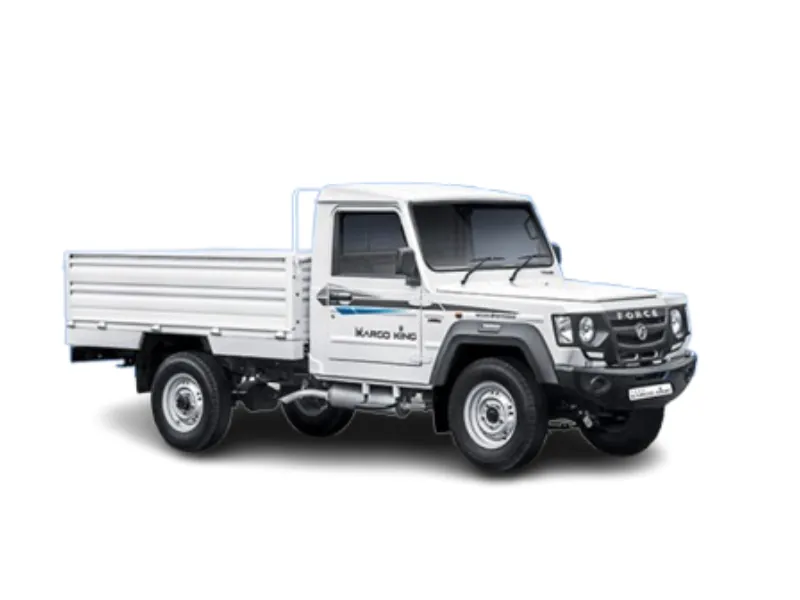

Force Motors Kargo King Base
Variants
Key Specifications of Force Motors Kargo King Base Truck
-
Fuel Tank Capacity
60 Ltr -
Max Power
60 HP @ 3200 rpm -
Max Torque
158 Nm @ 2000-2200 rpm -
Wheelbase (mm)
3030 -
Engine Type
4 Cylinder, DI -
Seating Capacity
D+2
Specifications of Force Motors Kargo King Base
- Engine Model TD2650 F(II EG)
- Emission BS-III
- Type 4 Cylinder, DI
- Displacement 2596 cc
- Max Output 60 HP @ 3200 rpm
- Max Torque 158 Nm @ 2000-2200 rpm
- Transmission Type Synchromesh
- No. of gears 5 Forward & 1 Reverse (5th gear – overdrive)
- Front Axle Dead Rigid
- Rear Axle Live Rigid
- Front Suspension Semi Elliptical Leaf Springs with Hydraulic telescopic Shock Absorbers and Anti-roll Bar
- Rear Suspension Semi Elliptical Two Stage Leaf Springs with Hydraulic Telescopic Shock Absorbers
- Steering Type Mechanical (Power Streeing – Optional)
- Turning Radius 7.0 metres
- Service Brakes Hydraulic-Dual Circuit (Vacuum Assisted)
- Front Brakes Disc Brakes
- Rear Brakes Drum Brakes
- Parking Brakes Mechanical on Rear Wheels
- Wheels & Tyres Size 7.00 R 15 / 215 / 75 R 15
- Wheel Base (mm) 3030
- Overall length (mm) 5032
- Overall Width (mm) 1660
- Overall height (mm) 2105
- Overhang Front (mm) 727
- Overhang Rear (mm) 1275
- Cargo Box (L x W x H) 2442 x 1610 x 546|8.01 x 5.28 x 1.79(In Feet)
- Ground Clearance (mm) 210
- Max. Permissible FAW 1075
- Max. Permissible RAW 1825
- Max. Permissible GVW 2900
- Kerb Weight 1750
- Rated Payload 1150
- Fuel Tank 60 Ltr
- Seating Capacity D+2
