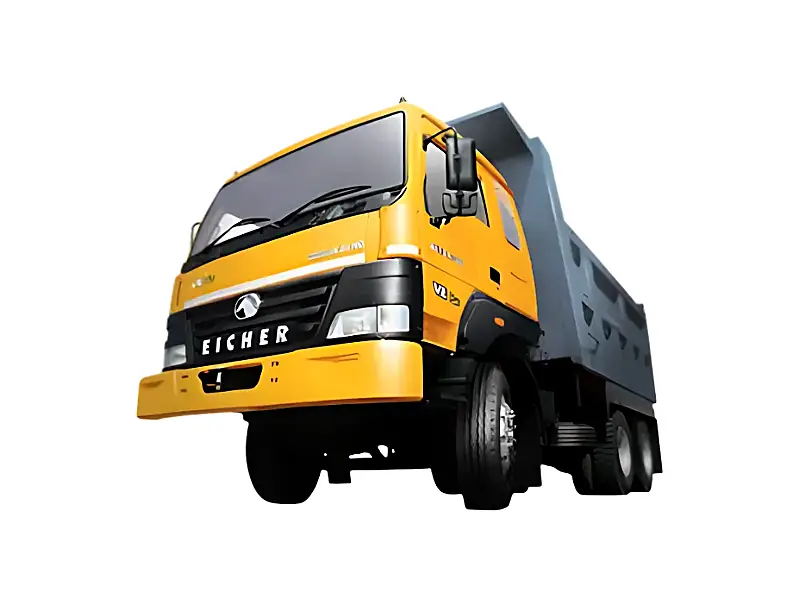

Eicher Terra 25 Base
Variants
Key Specifications of Eicher Terra 25 Base Truck
-
Fuel Tank Capacity
220 litres -
Engine Type
Cummins B 5.9, 6 Cylinder BSIII -
Max Power
183.3 hp @2500 rpm -
Max Torque
680 Nm @ 1440 rpm -
Wheelbase (mm)
4000 mm
Specifications of Eicher Terra 25 Base
- GVW 25000 kg
- Engine Type Cummins B 5.9, 6 Cylinder BSIII
- Max Power 183.3 hp @2500 rpm
- Max Torque 680 Nm @ 1440 rpm
- Clutch Type Booster Assisted push type
- Clutch Diameter 380 mm
- Gear Box ET80 6S, 6 Forward & 1 Reverse
- Axle Front: Heavy duty forged 'I' Beam reverse elliot type
- Axle Rear: Fully Floating Banjo
- Final Drive Ratio 6.166 / 6.83
- Chassis Type C Channel Ladder type frame - BSK 46. Dimesion: 285 x 76 x 7mm
- Suspension Front: Semi-Elliptical with anti roll bar
- Suspension Rear: Semi-Elliptical
- Steering Tilt and Telescopic hyadraulic power steering
- Wheelbase 4000 mm
- Body Size (CuM) 14 CuM Rock, 16 CuM Box
- Gradiability(%) 42.5%
- Max Speed 70 kmph
- Fuel Tank 220 litres
- Turning Circle Diameter 15.8 m
- Electrical 24 V, 120 Ah
- Tyre 10 x 20 Cross Ply
