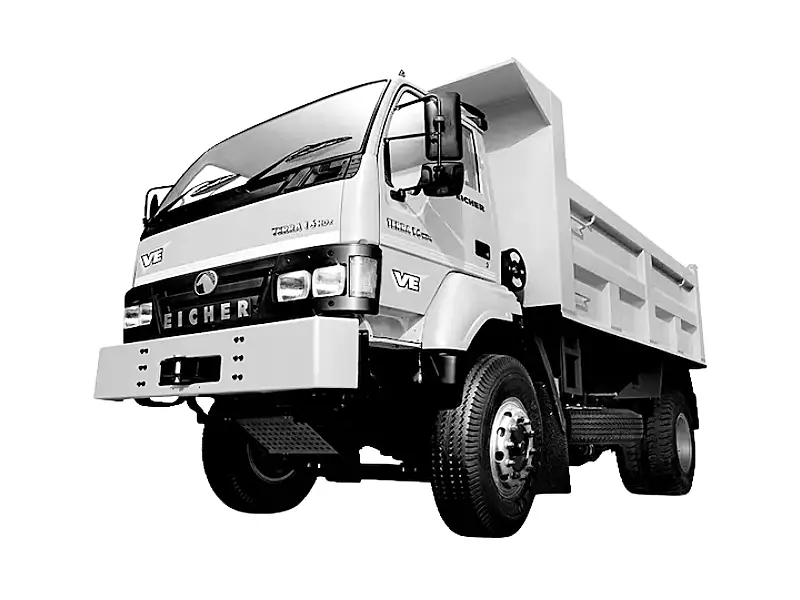

Eicher Terra 16HDR Base
Variants
Key Specifications of Eicher Terra 16HDR Base Truck
-
Fuel Tank Capacity
220 litres -
Engine Type
E683-TCI-108-3 -
Max Power
145 hp @ 2800 rpm -
Max Torque
471 Nm @ 1440 rpm -
Wheelbase (mm)
3485 mm
Specifications of Eicher Terra 16HDR Base
- GVW 16200 kg
- Engine Type E683-TCI-108-3
- Max Power 145 hp @ 2800 rpm
- Max Torque 471 Nm @ 1440 rpm
- Transmission ET60S5 (with PTO)
- Clutch Diameter 330 mm
- Axle Front: Revrse Elliot 'I' beam
- Axle Rear: Fully floating type
- Final Drive Ratio 6.83
- Chassis Type C Channel Ladder type with 6 mm thick side member & 5 mm thick Stiffner. Dimension :285 X 76 X 6
- Suspension Semi elliptical laminated leaf springs, variable rate in front & helper in rear Hyd. Type double acting shock absorbers at front .
- Steering Hydraulic Power Assisted
- Wheelbase 3485 mm
- Gradiability(%) 27%
- Max Speed 78 kmph
- Fuel Tank 220 litres
- Turning Circle Diameter 12.8 m
- Electrical 12 V
- Tyre 10 x 20 - 16PR (Radial opt.)
