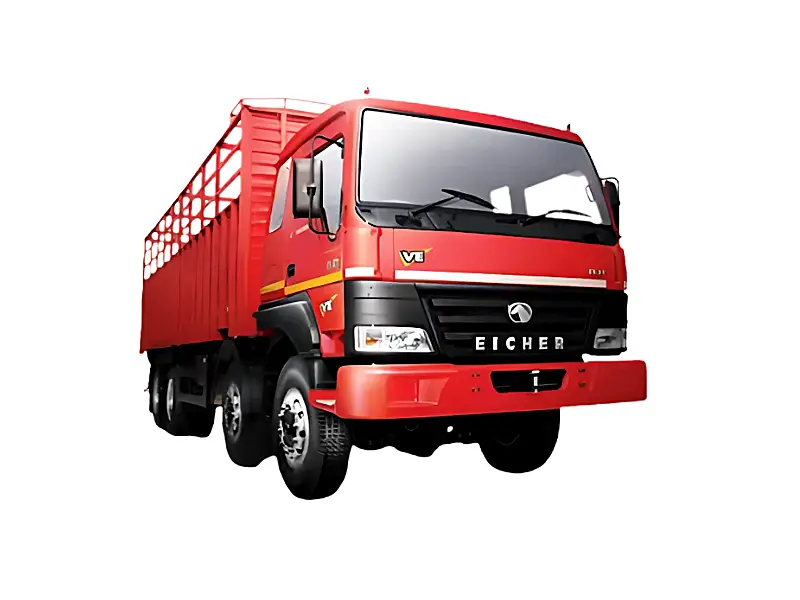

Eicher 35.31 Base
Variants
Key Specifications of Eicher 35.31 Base Truck
-
Fuel Tank Capacity
415 litres -
Engine Type
E613-TCI-113-3(N), 6 Cylinder -
Max Power
154 hp @2600 rpm -
Max Torque
569 Nm @ 1440 rpm -
Wheelbase (mm)
4700 mm
Specifications of Eicher 35.31 Base
- GVW 31000 kg
- Engine Type E613-TCI-113-3(N), 6 Cylinder
- Max Power 154 hp @2600 rpm
- Max Torque 569 Nm @ 1440 rpm
- Clutch Type Single dry plate diaphragm type hydraulic actuated
- Gear Box ET8M6M, 6 Forward & 1 Reverse
- Chassis Type C Channel Ladder type with 6 mm thick side member & 5 mm thick Stiffner. Dimension: 285 X 76 X 6
- Suspension Front: Semi elliptical laminated leaf springs,Hyd. Type double acting shock absorber
- Suspension Rear: Semi elliptical laminated leaf springs with Bell Crank Mechanism
- Steering Power Steering
- Max Speed 77 kmph
- Electrical 12 V
- Fuel Tank 415 litres
- Tyre 10 x 20 - 16PR Radial tyre
- Axle Front: Heavy duty forged "I" beam reversed elliot type
- Axle Rear: Heavy duty fully floating banjo type
- Gradiability(%) 18%
- Wheelbase 4700 mm
- Turning Circle Diameter 10.35 m
