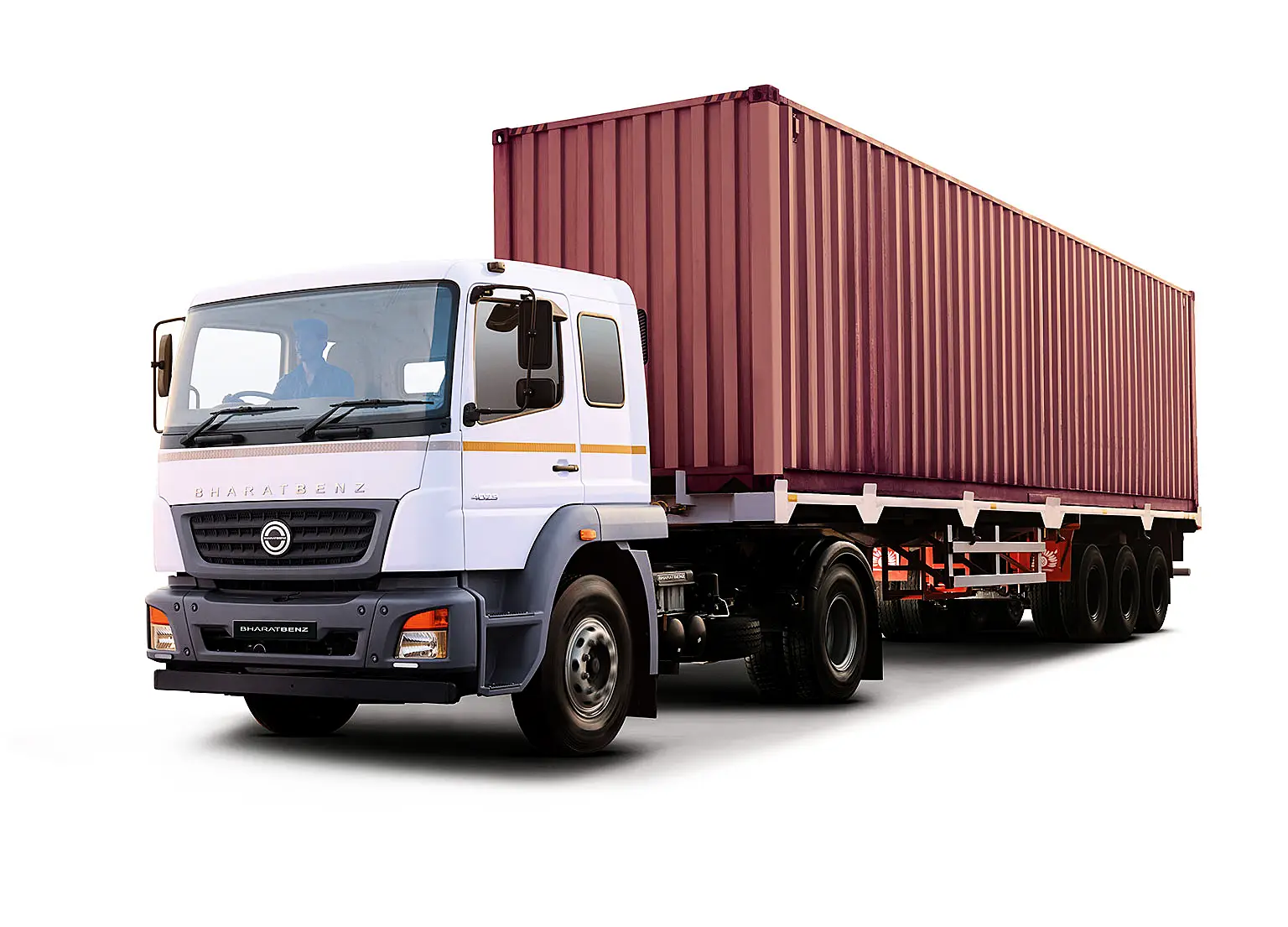

Bharat Benz 4023T Base

Specifications of Bharat Benz 4023T Base

• Wheel Base 3600
• Overall Length 6040
• Overall Width 2490
• Overall Height 2960
• Front Overhang 1460
• Rear Overhang 970
• Minimum ground Clearance 264
• Gross Vehicle Weight (GVW) 40,200 kg
• Kerb Weight 6550 kg
• Model DE170BS3
• Maximum Power 170 kW (230hp) @ 2200 RPM
• Maximum Torque 810 Nm @ 1200 – 1600 rpm
• No. of cylinders, Displacement 6 Nos., 6373 cc
• Gearbox Model & Type G 131, 9F + 1R, Mechanical, Synchromesh Gears
• Clutch Type, Diameter Single dry plate, Hydraulic control with clutch booster, 430 mm
• Front Axle Model, Type Reverse Elliot
• Rear Axle Model, Type RS4, Fully floating, Single reduction hypiod drive with differential lock
• Differential Ratio 4.778
• Chassis Type Channel Section with cross member
• Depth x Flange Width x Thickness 228 mm x 70 mm x 9 mm
• Front Suspension Parabolic type leaf spring with shock absorbers
• Rear suspension Semi elliptic multi leaf, with auxiliary springs
• Anti-roll bar In Front as standard
• Service brake Pneumatic, Foot Operated, Dual Line
• Parking Brake Hand control valve acting on rear axle, Spring brake
• Wheel Rims & Tyre 7.5″ x 20″ & 11.00 R20 – 16PR / (Optional) 11.00 x 20 – 16PR
• Steering Type Hydraulic Power Assisted
• Cabin Sleeper Cabin with Berth, Tiltable
• F.I.P. Unitized
• Fuel Tank 380 liters (Additional 200 liters – Optional)
• Voltage 24 V Electrical System
• Battery Capacity 2 x 12V, 150 Ah
• Maximum Gradability 24%
• Maximum Grade Speed 90 km/h
• Minimum Turning Circle Diameter 13.1 m
