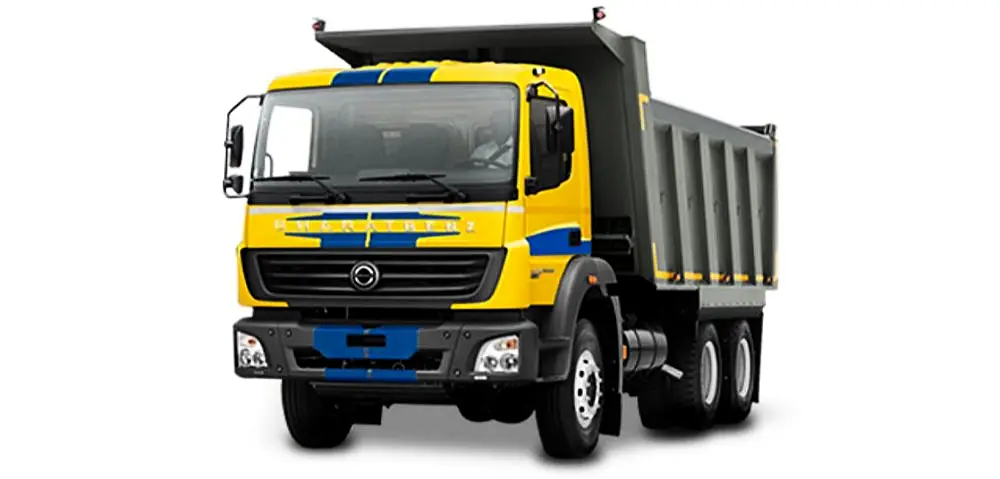

Bharat Benz 2523C Base

Specifications of Bharat Benz 2523C Base

• Wheel Base 4275
• Overall Length 7160 / 7460 (RMC)
• Overall Width 2490
• Overall Height 2975
• Front Overhang 1460
• Rear Overhang 750 / 1050 (RMC)
• MINIMUM GROUND CLEARANCE 234
• GROSS VEHICLE WEIGHT (GVW) 25,000 kg
• Model DE170BS3
• MAXIMUM POWER 170 kW (231hp) @ 2200 RPM
• MAXIMUM TORQUE 810 Nm @ 1200 – 1600 rpm
• No. of cylinders, Displacement 6 Nos., 6373 cc
• Gearbox Model & Type G131, 9F + 1R, Mechanical, Synchromesh Gears
• Clutch Type, Diameter Single dry plate, Hydraulic control with clutch booster, 395 mm
• Front Axle Model, Type VL4, Reverse Elliot
• Rear Axle Model, Type RT4, Full floating, Topoid gears
• Differential Ratio 4.778
• Chassis Type Channel Section with cross member
• Depth x Flange Width x Thickness 228 mm x 70 mm x 9 mm
• Front Suspension Parabolic type lead spring with 2 hydraulic shock absorbers
• Rear Suspension Inverted Semi elliptic (Bogie)
• Anti-roll Bar In Front & Rear
• Service Brake Pneumatic, Foot Operated, Dual Line
• PARKING BRAKE Hand control valve acting on rear axle
• Wheel Rims & Tyre 7.5″ x 20″ & Crossply 11.00 x 20 – 16PR / (Optional) Mining 11.0 x 20 – 16PR
• Steering Type Hydraulic Power Assisted
• Cabin Extended Day Cabin, Tiltable
• F.I.P. Unitized
• Fuel Tank 240 liters
• Voltage 24 V Electrical System
• Battery Capacity 2 x 12V, 120 Ah
• Maximum Gradability 43.5%
• Maximum Grade Speed 90 km/h
• Minimum Turning Circle Diameter 15.5 m
• Standard Fully Built 16 Cum Box Tipper
• Load Body Option Fully Built 14 Cum ox Tipper, Cabin & Chassis
