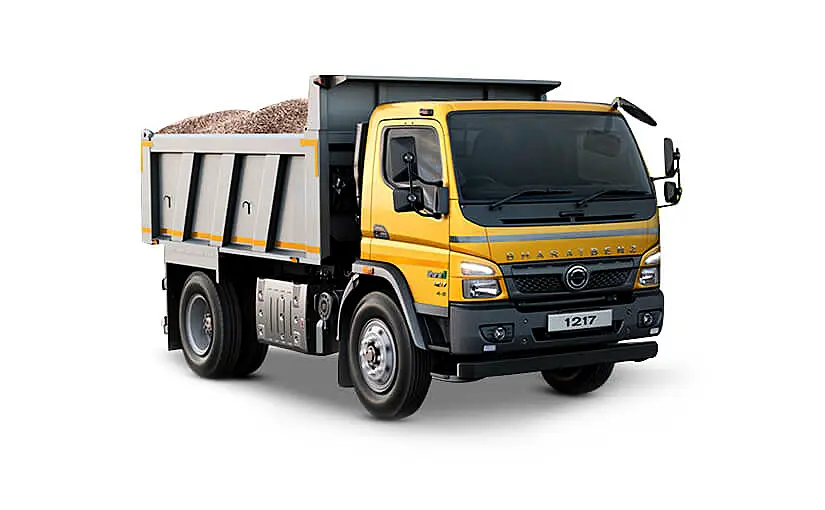

Bharat Benz 1217C Base

Specifications of Bharat Benz 1217C Base

• Wheel Base 3760
• Overall Length 6035
• Overall Width 2135
• Overall Height 2455
• MINIMUM GROUND CLEARANCE 270
• Load Body Length 6.5 Cum Box Tipper)
• GROSS VEHICLE WEIGHT (GVW) 13,000 kg
• Model 4D34i
• MAXIMUM POWER 125 kW (170hp) @ 2500 RPM
• MAXIMUM TORQUE 520 Nm @ 1500 – 2000 rpm
• No. of cylinders, Displacement 4 Nos., 3907 cc
• Gearbox Model & Type G 85 – 6F + 1R, Mechanical, G 85 – 6F + 1R, Mechanical, Synchromesh GearsGears
• Clutch Type, Diameter Single dry plate, Hydraulic Control with clutch booster, 362 mm
• Front Axle Model, Type IF 5.0, Reverse Elliot
• Rear Axle Model, Type AAM 10.22, Full floating, Hypiod gears
• Differential Ratio 6.33
• Chassis Type Ladder type Channel Section with cross member
• Depth x Flange Width x Thickness 230 mm x 80 mm x 7mm
• Front Suspension Semi elliptic leaf spring with shock absorbers
• Rear Suspension Semi elliptic laminated leaf spring
• Anti-roll Bar In Front & Rear
• Service Brake Pneumatic, Foot Operated, Dual Line
• PARKING BRAKE Pneumatically operated Spring brake
• Wheel Rims & Tyre 6.50 x 16, 8.25 x 20-16 PR
• Steering Type Hydraulic Power Assisted
• Cabin Day Cabin, Tiltable
• Fuel Tank 200 liters
• Voltage 24 V Electrical System
• Maximum Gradability 33%
• Maximum Grade Speed 80 km/h
• Minimum Turning Circle Diameter 14.5 m
• Standard Fully Built 6.5 CuM Box Tipper
• Load Body Option Cabin Chassis
