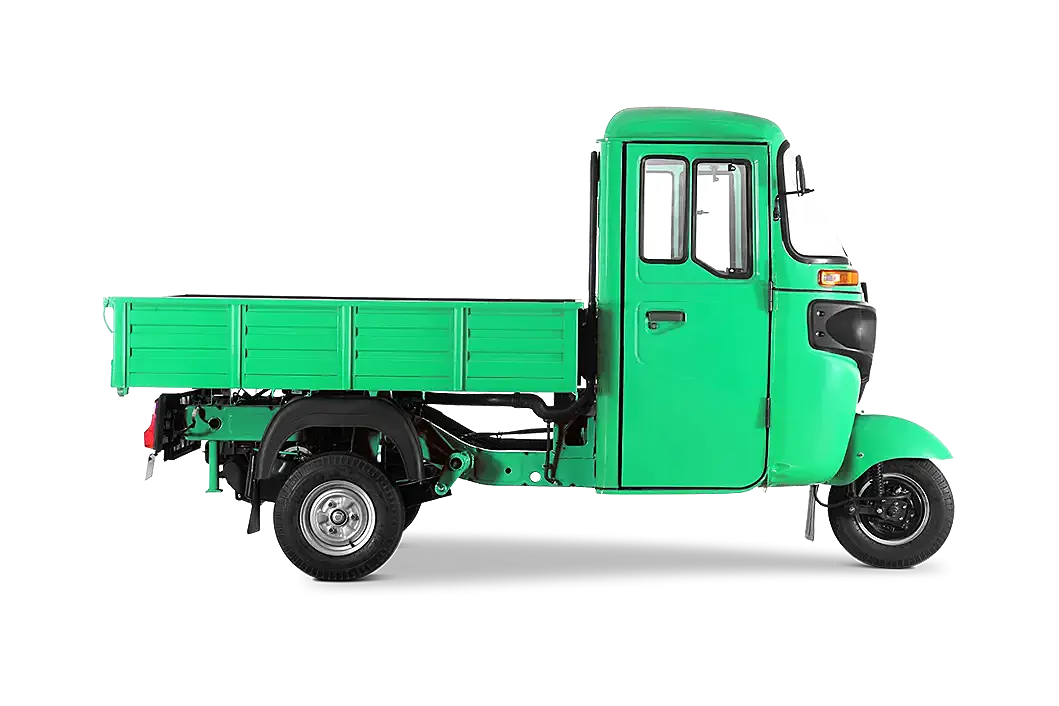

Bajaj MAXIMA Cargo Base
Variants
Key Specifications of Bajaj MAXIMA Cargo Base Truck
-
Wheelbase (mm)
2125 mm -
Fuel Tank Capacity
12 L -
Max Power
10.5 Ps @4500 rpm -
Max Torque
19 Nm @ 3500 rpm -
Battery Capacity
12V 32 Ah
Specifications of Bajaj MAXIMA Cargo Base
- Engine Type Four stroke, air & oil cooled
- Displacement 236 cc
- Clutch Wet, multiplate
- Max Power 10.5 Ps @4500 rpm
- Max Speed 58 KM/HR
- Max Torque 19 Nm @ 3500 rpm
- Front Brakes Type Hydraulically actuated brake shoes – Leading & Trailing Type
- Rear Brakes Type Hydraulic expanding friction shoe - Leading Trailing Type
- Front Tyres 4.50 - 10, 8 Ply
- Rear Tyres 4.50 - 10, 8 Ply
- Battery 12V 32 Ah
- Head Lamps 12V 35/35W, Twin Headlamps
- System 12 V DC
- Tail Lamps 12V 21/5W or 18/5W
- FRAME Type Monocoque chassis with central beam and cross member welded
- Fuel Tank 12 L
- Ground Clearance 190 mm
- Kerb Weight 475 Kgs
- Length x Width x Height 3230 mm x 1493 mm x 1818 mm
- Suspension - Front Fork with Leading arms and Anti-dive link, twin hydraulic shock absorbers and helical springs
- Suspension Rear Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers
- Wheelbase 2125 mm
