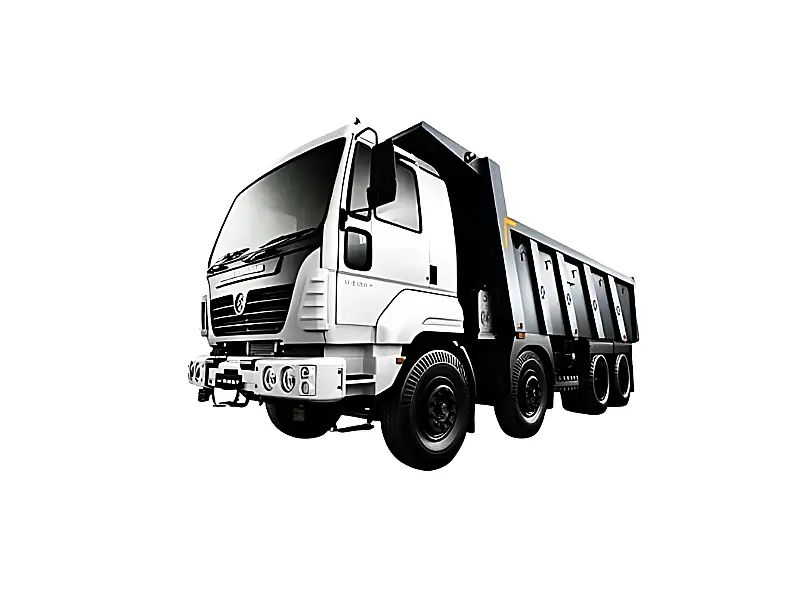

Ashok Leyland U-3123 T Base
Variants
}
Key Specifications of Ashok Leyland U-3123 T Base Truck
-
Engine Type
H series, Turbocharged Intercooled, BS-III with CRS fuel injection equipment -
Max Power
225 HP @ 2500 rpm -
Max Torque
800 Nm @ 1400-1900 rpm -
Gross vehicle weight (Kgs)
31000 kgs -
Wheelbase (mm)
5250 mm -
Fuel Tank Capacity
300 litres
Specifications of Ashok Leyland U-3123 T Base
- Applications: Voluminous material movement at ports & Surface transportation
- Engine H series, Turbocharged Intercooled, BS-III with CRS fuel injection equipment
- POWER 225 HP @ 2500 rpm
- Torque 800 Nm @ 1400-1900 rpm
- Clutch 380mm dia single plate dry type with clutch booster and ceramic disc
- Transmission 9 speed direct drive First gear ratio – 8.83:1 Crawler gear ratio – 12.73:1
- Cabin All steel G91 Day cabin
- Tyre 11.00 X 20-16 PR 11.00 R 20-16 PR
- Max Speed 60 kmph
- Gradeability 33.5%
- GVW 31000 kgs
- Wheelbase 5250 mm
- Load Body Capacity 19 CuM box 22 CuM box
- Rear axle ratio RAR: 5.83:1
- Front Suspension Semi-elliptic, multi-leaf
- Rear Suspension Bogie suspension with V-rod
- Fuel Tank Capacity 300 litres
