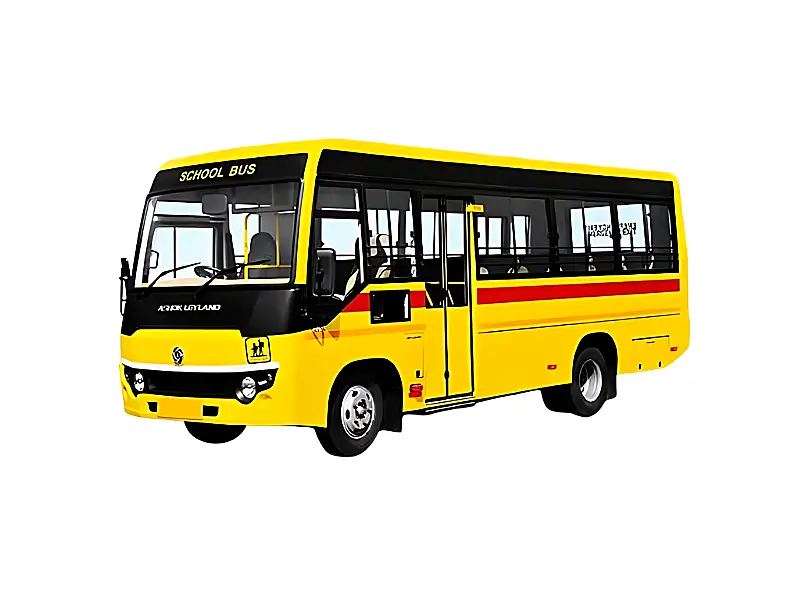

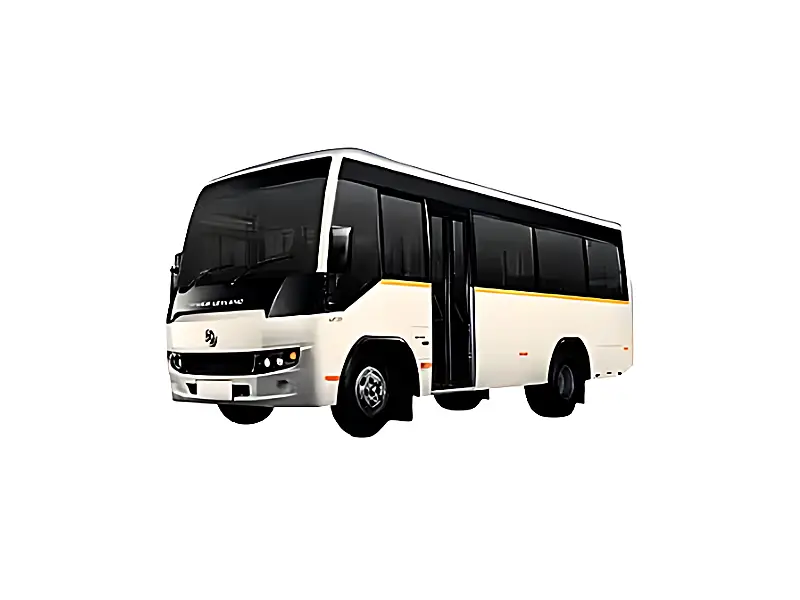

Ashok Leyland MiTR Base
Variants
}
Key Specifications of Ashok Leyland MiTR Base Truck
-
Seating Capacity
26 + 1 + DRIVER -
Engine Type
3L ZD30 DDTi COMMON RAIL DIESEL ENGINE (BS3) -
Max Power
87 KW @ 2750 RPM -
Max Torque
320 NM @ 1600-2400 RPM -
No. of Tyres
FRONT 2, REAR 4, SPARE 1 -
Gross vehicle weight (Kgs)
6050
Specifications of Ashok Leyland MiTR Base
- Seating Capacity 26 + 1 + DRIVER
- Engine Type 3L ZD30 DDTi COMMON RAIL DIESEL ENGINE (BS3)
- CUBIC CAPACITY 2953 CC
- MAXIMUM POWER OUTPUT IN KW) 87 KW @ 2750 RPM
- MAXIMUM TORQUE (NM) 320 NM @ 1600-2400 RPM
- Clutch 280MM DIA, SINGLE DRY PLATE, DIAPHRAGM PUSH TYPE
- Transmission FULLY SYNCHROMESH 5-FORWARD & 1-REVERSE
- FUEL TANK CAPACITY (LITER) 60 LITER (WITH LONGER NECK)
- Service brake DUAL CIRCUIT, HYDRAULIC WITH VACUUM ASSIST WITH LCRV
- PARKING BRAKE TRANSMISSION MOUNTED, CABLE OPERATED, MECHANICAL LINKAGE
- FRONT & REAR SUSPENSION PARABOLIC SUSPENSION WITH DOUBLE ACTING SHOCK ABSORBERS
- NO. OF TYRE FRONT 2, REAR 4, SPARE 1
- Tyre size 7.00 X 16-12 PR
- GROSS VEHICLE WEIGHT (KG) 6050
- WHEEL BASE (MM) 3700
- OVERALL DIMENSION (MM) L-7060 X W-2080 X H-2630
- PASSENGER PLATFORM HEIGHT (MM) 860
- MIN. TURNING RADIUS (M) 7.2
- MIN. GROUND CLEARANCE (MM) 198
- COMPRESSOR 210 CC, 20 KW
- COOLING UNIT ROOF MOUNTED
- WINDOW GLASS TINTED (50%)
