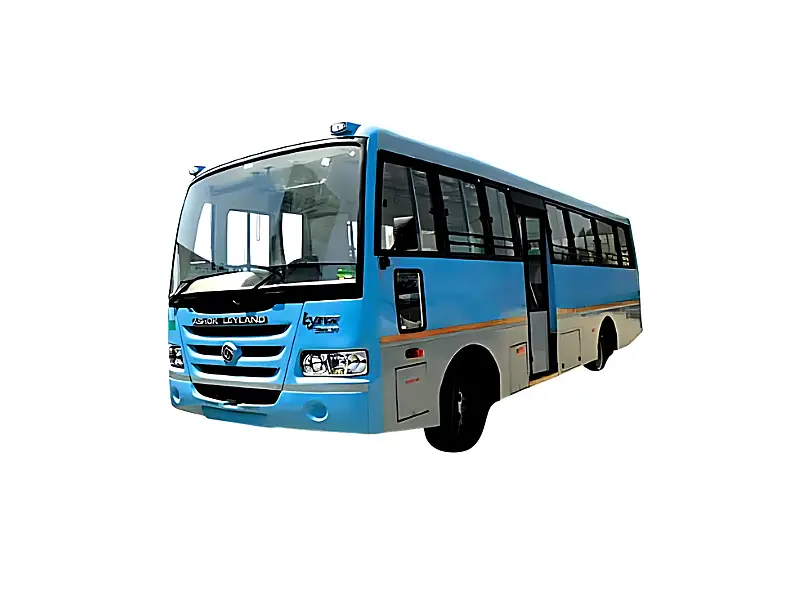

Ashok Leyland Lynx Smart 5200

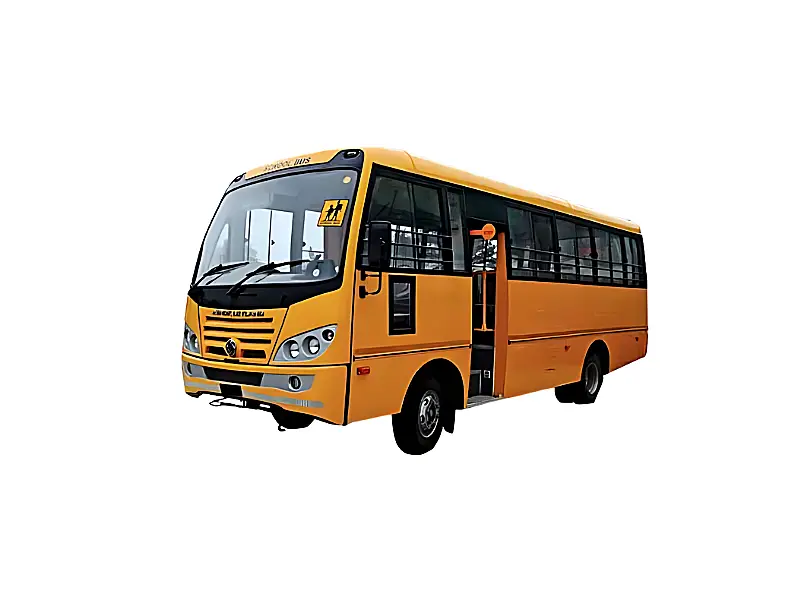

Variants
}
Key Specifications of Ashok Leyland Lynx Smart 5200 Truck
-
Engine Type
“H-SERIES”, 4 CYCLINDER, DIRECT INJECTION TURBO CHARGED DIESEL ENGINE WITH INLINE FIP -
Max Power
120 HP (88KW) @ 2400RPM -
Max Torque
415 NM @ 1400 RPM -
Power Steering
INTEGRAL POWER ASSISTED STEERING -
Wheelbase (mm)
5200 -
Gross vehicle weight (Kgs)
10000
Specifications of Ashok Leyland Lynx Smart 5200
- Engine “H-SERIES”, 4 CYCLINDER, DIRECT INJECTION TURBO CHARGED DIESEL ENGINE WITH INLINE FIP
- ENGINE CAPACITY 3839CC
- MAXIMUM POWER 120 HP (88KW) @ 2400RPM
- MAXIMUM TORQUE 415 NM @ 1400 RPM
- Clutch 330 MM HYDRAULIC CLUTCH ACTUTATION WITH BOOSTER
- Transmission SYNCHROMES 5 SPEED GEAR BOX (FGR6.5:1)
- Suspension SEMI ELLIPTICAL MULTI LEAF AT FRONT AND REAR WITH SHOCK ABSORBER/ PARABOLIC SUSPENSION WITH SHOCK ABSORBER
- Steering INTEGRAL POWER ASSISTED STEERING
- Brakes DUAL CIRCUIT, FULL AIR ‘S’ CAM BRAKE SYSTEM
- Electricals 12V, 120 AH: ALTERNATOR CAPACITY 65MPS
- Tyres 7.50 X 16 – 16PR
- WHEEL BASE (MM) 5200
- FRONT/REAR OVERHANG (MM) 1980/3120
- LENGTH/WIDTH/HEIGHT 10300/2350/2916
- TURNING CIRCLE CLEARANCE DIA 19800
- GVW (KGS) 10000
- FLOOR HEIGHT (MM) 900
- Seating Capacity 46+D(2X2)/54+D(3X2)
