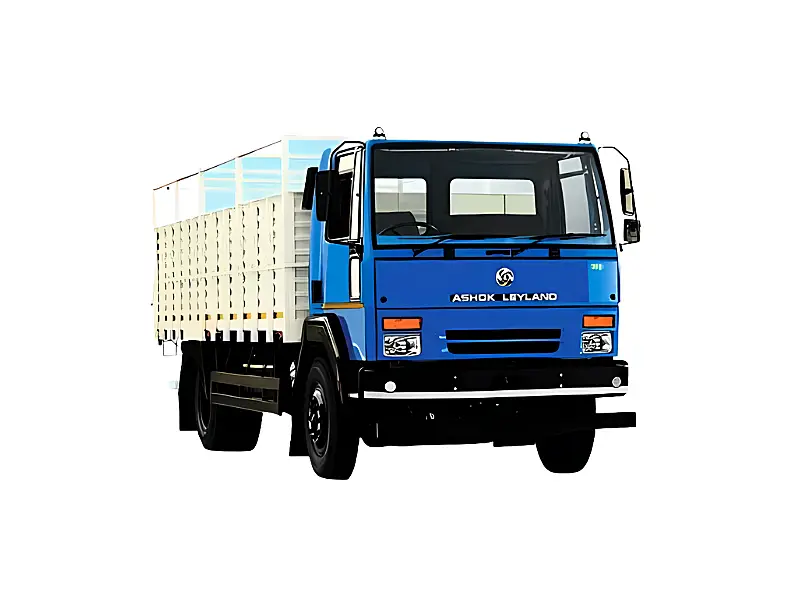

Ashok Leyland ECOMET 1012 STRONG 3250
Variants
}
Key Specifications of Ashok Leyland ECOMET 1012 STRONG 3250 Truck
-
Engine Type
“H-SERIES”, 4 CYCLINDER WITH INLINE FIP, BS III -
Max Power
120 HP @ 2500 RPM -
Max Torque
415 NM @ 1400 RPM -
Power Steering
POWER STEERING -
Battery Capacity
12 V-100 AH (20 HR RATING) -
Fuel Tank Capacity
212 LTS (115 LTS FOR 2850 MM WB)
Specifications of Ashok Leyland ECOMET 1012 STRONG 3250
- Engine “H-SERIES”, 4 CYCLINDER WITH INLINE FIP, BS III
- MAXIMUM POWER 120 HP @ 2500 RPM
- MINIMUM TORQUE 415 NM @ 1400 RPM
- Clutch 330 MM DIA SINGLE PLATE DRY TYPE-HYDRAULIC ACTUTATION
- Gear Box SYNCHROMESH 6S ODGB
- Frame ALL STEEL LADDER TYPE WITH BOLTED CONSTRUCTION
- Front axle I SECTION REVERSE ELLIOT
- Rear axle FULLY FLOATING HYPOID REAR AXLE
- Suspension SHACKLE ENDED- MULTILEAF SPRINGS
- Cabin ALL STEEL FACTORY BUILT TILTABLE DAY CABIN
- Steering POWER STEERING
- Brakes FULL AIR-DUAL LINE S-CAM BRAKES
- Parking brakes SPRING ACTUATED, PNEUMATIC (ON REAR ONLY)
- Battery 12 V-100 AH (20 HR RATING)
- FUEL TANK 212 LTS (115 LTS FOR 2850 MM WB)
- Tyres 8.25 X 16 – 16PR
- GVW 10900 KGS
- WHEEL BASE (MM) 3250
- FRONT/REAR OVERHANG (MM) 1338/1580
- Overall Length 6168
- TURNING CIRCLE CLEARANCE DIA 11700
- Load Body Length 14FT
