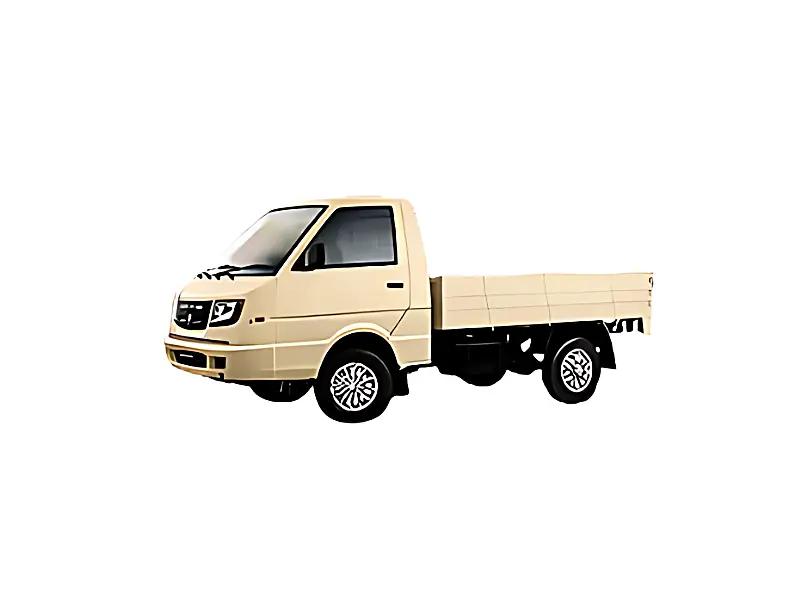

Ashok Leyland Dost FSD

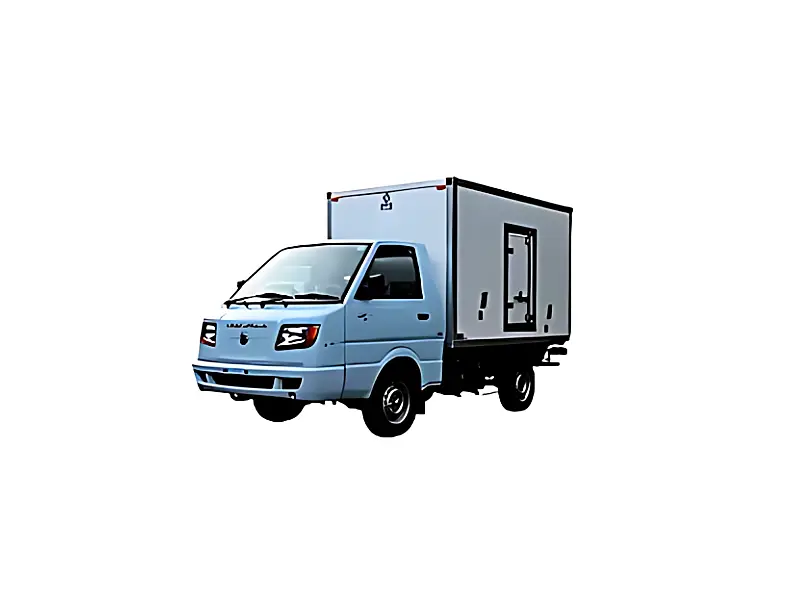

Variants
}
Key Specifications of Ashok Leyland Dost FSD Truck
-
Engine Type
TURBO-CHARGED DIESEL COMMON RAIL(TDCR) ENGINE -
Max Power
58 HP(42.51KW)@3,300 RPM -
Max Torque
157.5 NM(16.1 KG-M)@ 1,600-2,400 RPM -
Gross vehicle weight (Kgs)
2,522 KG -
Seating Capacity
DRIVER+1 -
Fuel Tank Capacity
40 LITRES
Specifications of Ashok Leyland Dost FSD
- Engine 1.5L TDCR ENGINE(BS-3 & BS-4)
- Type TURBO-CHARGED DIESEL COMMON RAIL(TDCR) ENGINE
- DISPLACEMENT/CUBIC CAPACITY 1,487
- MAXIMUM POWER@RPM 58 HP(42.51KW)@3,300 RPM
- MAXIMUM TORQUE@RPM 157.5 NM(16.1 KG-M)@ 1,600-2,400 RPM
- Clutch 215 MM DIAMETER, DIAPHRAGM,SINGLE DRY PLATE, POT TYPE
- TYPE/NO OF GEARS FULLY SYNCHROMESH 5-SPEED GEARBOX WITH OVERDRIVE(5 FORWARD+1 REVERSE GEARS)
- GEARS SHIFTING CABLE TYPE
- Break TYPE HYDRAULIC VACUUM ASSISTED BOOSTER BRAKES WITH LSPV
- FRONT;REAR VENTILATED DISC TYPE; DRUM TYPE
- Suspension - Front RIGID TUBULAR AXLE WITH PARABOLIC LEAF SPRING
- Suspension - Rear PARABOLIC LEAF SPRING, 2 STAGES, OVERSLUNG
- TYRES(SIZE/TYPE) 185 R14 LT, 8PR , RADIAL
- GVW(GROSS VEHICLE WEIGHT) 2,522 KG
- KERB WEIGHT(INC. CONTAINER) 1,274 KG(WITH DRIVER)
- RATED PAYLOAD(WITH CONTAINER) 1,248 KG(1.25 TONS)
- Seating Capacity DRIVER+1
- Fuel Tank Capacity 40 LITRES
- OVERALL VEHICLE LENGTH 4,485MM
- OVERALL VEHICLE WIDTH 1,620MM
- OVERHALL VEHICLE HEIGHT 1,868MM
- Wheelbase 2,350 MM
- LOAD BODY/ CARGO DECK(L X B X H) 2500MM X 1620MM X 380MM(8.2FT X 5.3FT X 1.25FT)
- MINIMUM TURNING CIRCLE RADIUS 5.85MM
- Ground Clearance 177MM
- LOADING HEIGHT 840MM
- MAXIMUM SPEED 90 KMPH
- MAXIMUM GRADEBILITY 29%(WITH RATED PAYLOAD)
